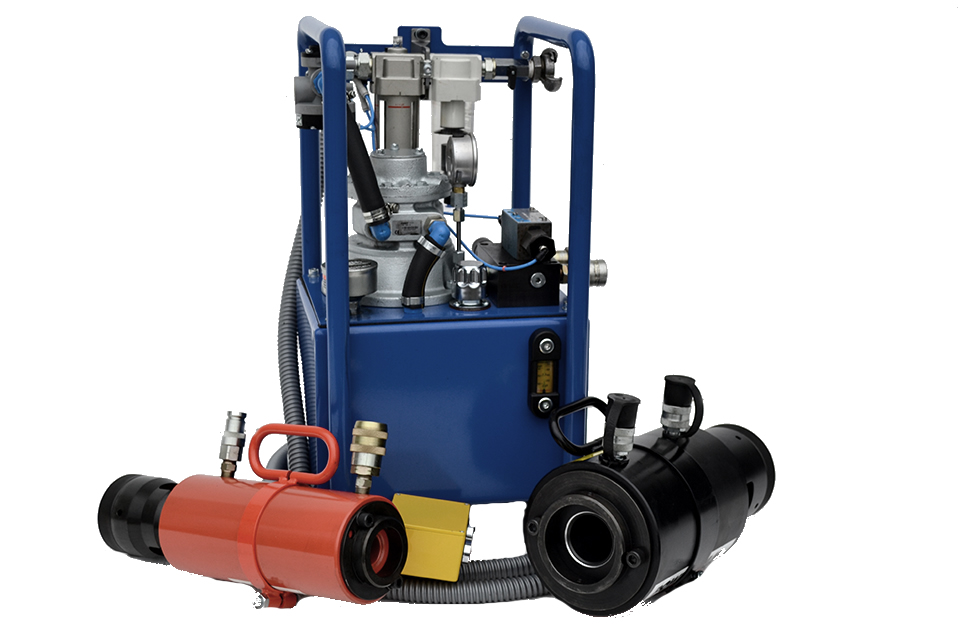

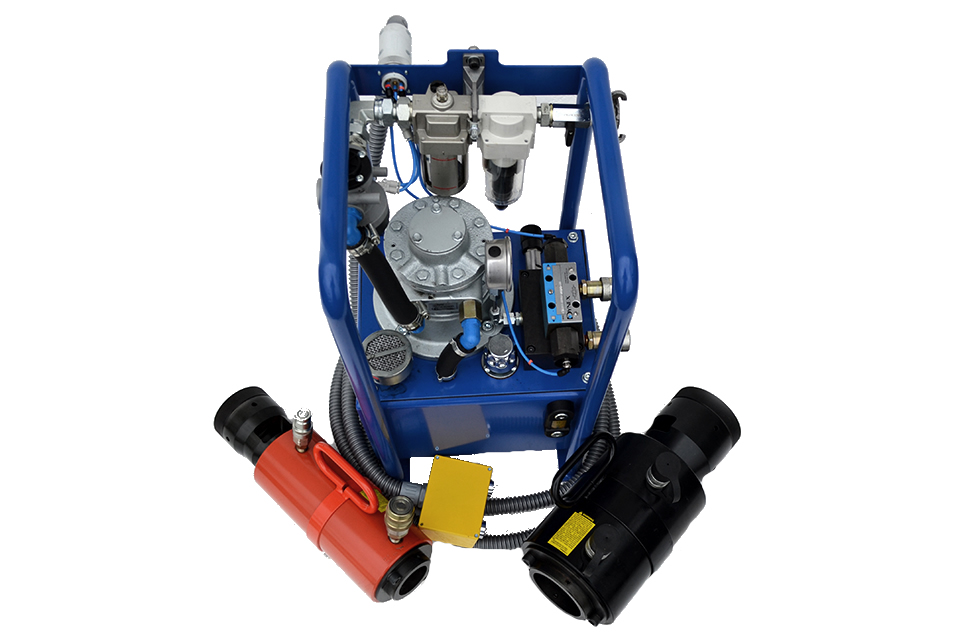

Javelin Semi-Auto Puller

The JAVELIN is a compact and dependable Tube Pulling machine, designed for the continuous removal of tubes from Heat Exchangers, Condensers, and Boilers. The Stub Pulling option allows the quick removal of tube stubs without the need to drive in mandrels.

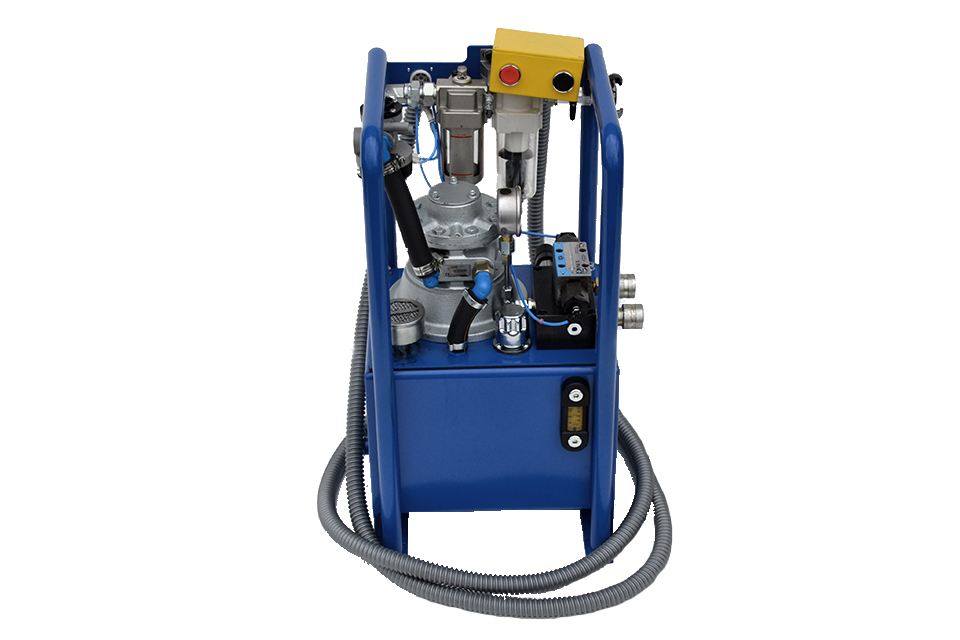

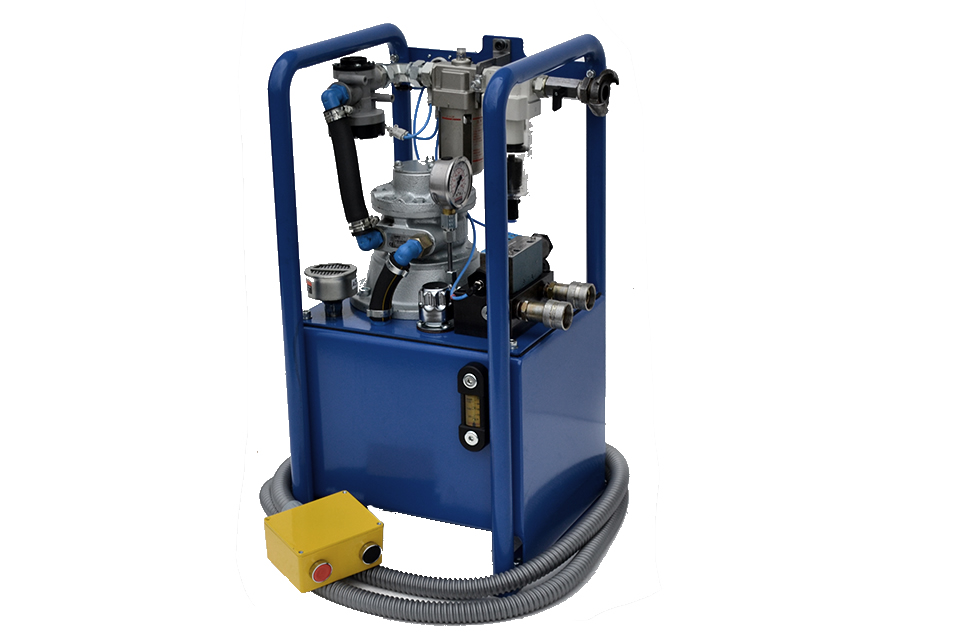

The powerpack is available in a range of voltages for workshop and low-hazard areas or as a Fully Pneumatic Powerpack, designed especially for use in hazardous environments. Equipped with a 2-stage pump it provides high force when needed and increased speed when it is not.

The JAVELIN is a versatile machine; essential for contractors with tight access or sample extractions. It is ideal for the speedy removal of tube stubs. It can be easily transported and is quick to set-up.


  • Electric or Pneumatic Power Options Available
  • 30 Ton, 60 Ton or Stub Puller Ram Available
  • Semi-Automatic
  • 1/2" to 2" Continuous Tube Pulling

Comparison chart


Javelin Semi-Auto Puller

Trident Automatic Puller
Pulling Ram Options

30 Ton Force - 1.25M/Min Free Pull Speed
60 Ton Force - 0.6 M/Min Free Pull Speed

15 Ton Force - 5M/Min Free Pull Speed
30 Ton Force - 3M/Min Free Pull Speed
45 Ton Force - 1.5M/Min Free Pull Speed

Pulling Type

Semi-Automatic Continuous

Automatic Continuous

Power Pack Weight (with oil)

75 Kg (165 Lbs)

200 Kg (440 Lbs)

Max. Operating Pressure

700 Bar (10,150 psi)

300 Bar (4,350 psi)
