The TRIDENT V3 Automatic Tube Puller is a swift, reliable solution for the removal of even the most stubborn tubes from Heat Exchangers, Condensers and Boilers.
Using our tried and tested extraction system, tubes can be continuously pulled from between 12.5mm OD. (½”) and 76mm OD. (3”)** at up to 5 m/Min*, a choice of 15, 30 & 45 Ton pulling ram options are available.
One of the most significant upgrades in the latest Version 3 machine is the elimination of the ram switching system, previously a potential source of downtime. The mechanical switching rods replaced by a more reliable hydraulic switching system, now fully integrated into the power pack.
TRIDENT V3 is the latest, essential equipment for fast turn around jobs where time is money and reliability is essential.

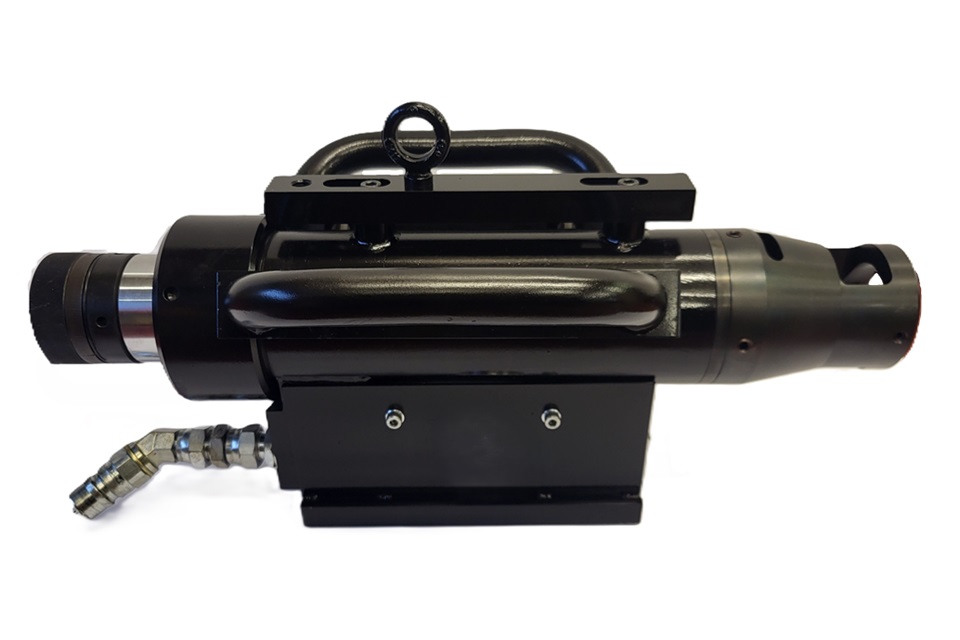

*Achieved with the 15Ton Pulling Ram
**Achieved with the 45Ton Pulling Ram

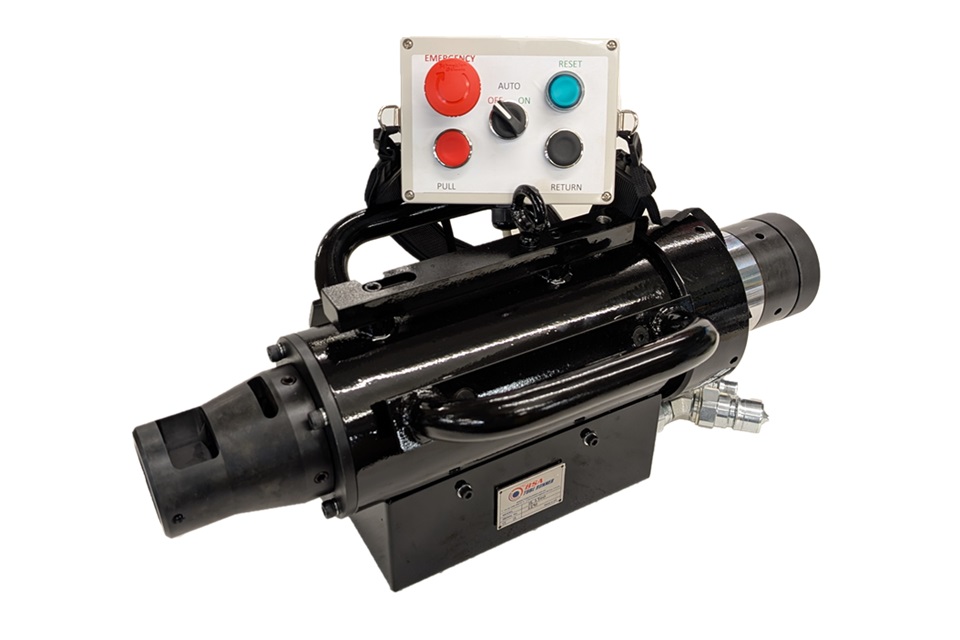

- The V3 continues to offer user-friendly controls, including manual pull and return, which allow for precise jogging of the ram.
- Whatever your working environment we have a Powerpack option to suit.

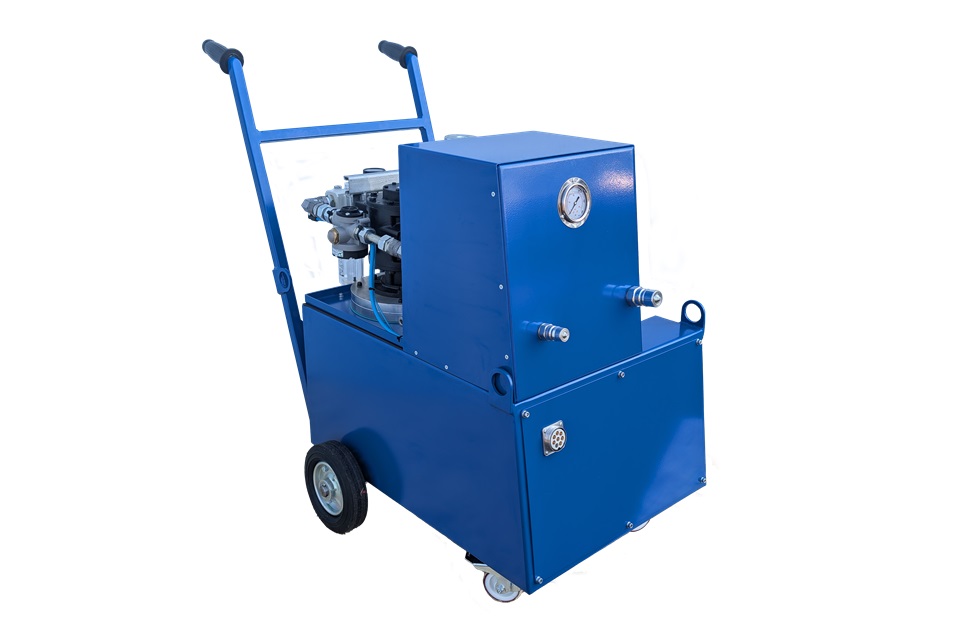

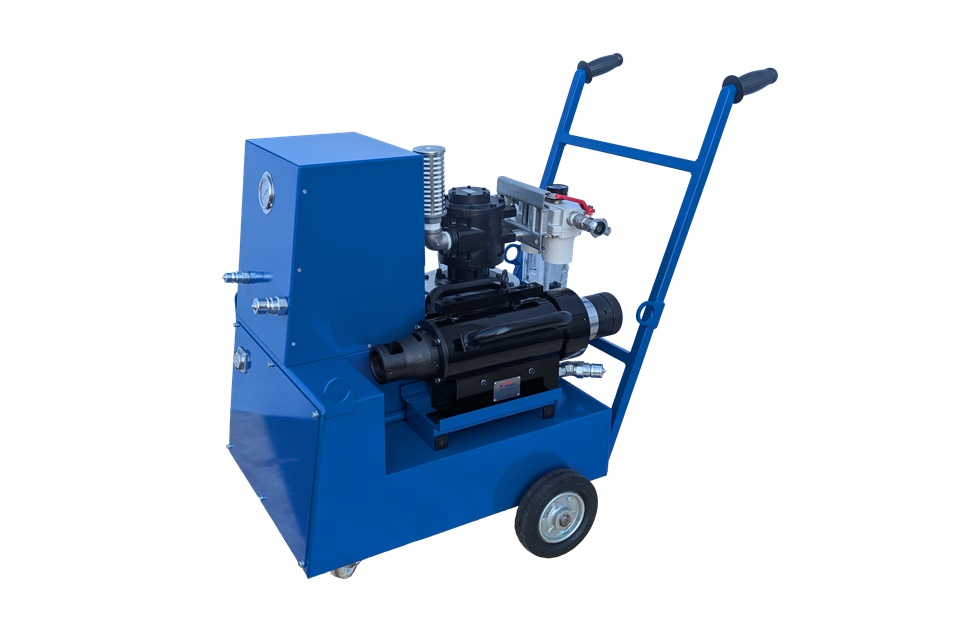

- We offer a 380 – 415 Volt 3 Phase Electric Powerpack for workshop and low-hazard areas, or a Fully Pneumatic 6.5HP Powerpack, designed especially for use in hazardous environments, like petrochemical refineries where spark risks are present.
- TRIDENT is truly essential equipment for fast turnaround jobs where time is money and reliability is essential.
- Latest Hydraulic Pressure Switching Technology
- Electric or Pneumatic Power Options Available

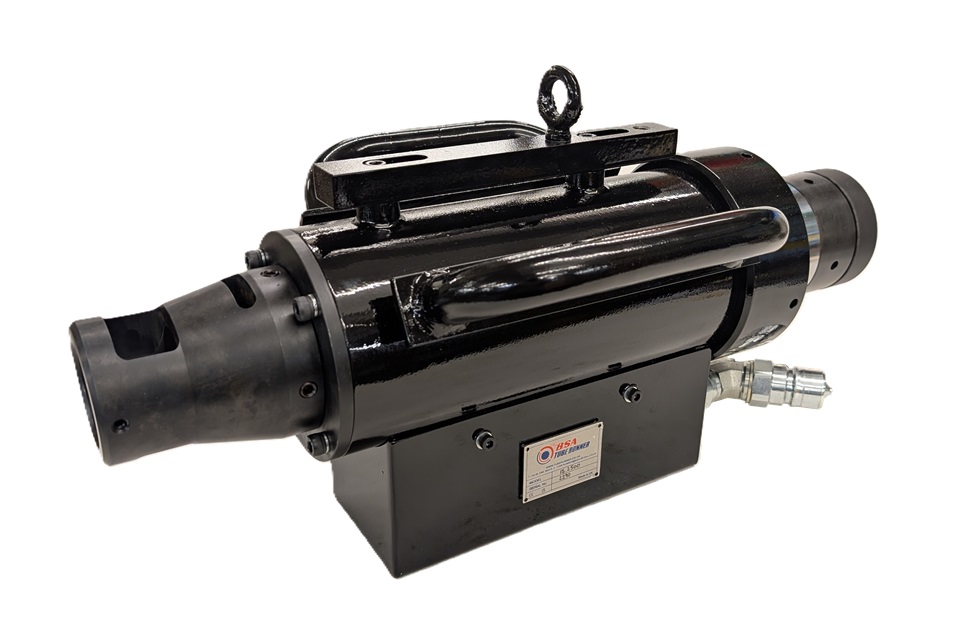

- 15 Ton, 30 Ton, or 45 Ton Rams Available
- Automatic
- 1/2" to 3" Continuous Tube Pulling
Comparison chart
| Specification |  Trident V3 Automatic Puller |
Javelin Semi-Auto Puller |
|---|---|---|
| Pulling Ram Options | 15 Ton Force - 4M/Min Free Pull Speed |
30 Ton Force - 1.25M/Min Free Pull Speed |
| Pulling Type | Automatic Continuous |
Semi-Automatic Continuous |
| Power Pack Weight (without oil) | 200 Kg (440 Lbs) |
75 Kg (165 Lbs) |
| Max. Operating Pressure | 300 Bar (4,350 psi) |
700 Bar (10,150 psi) |
