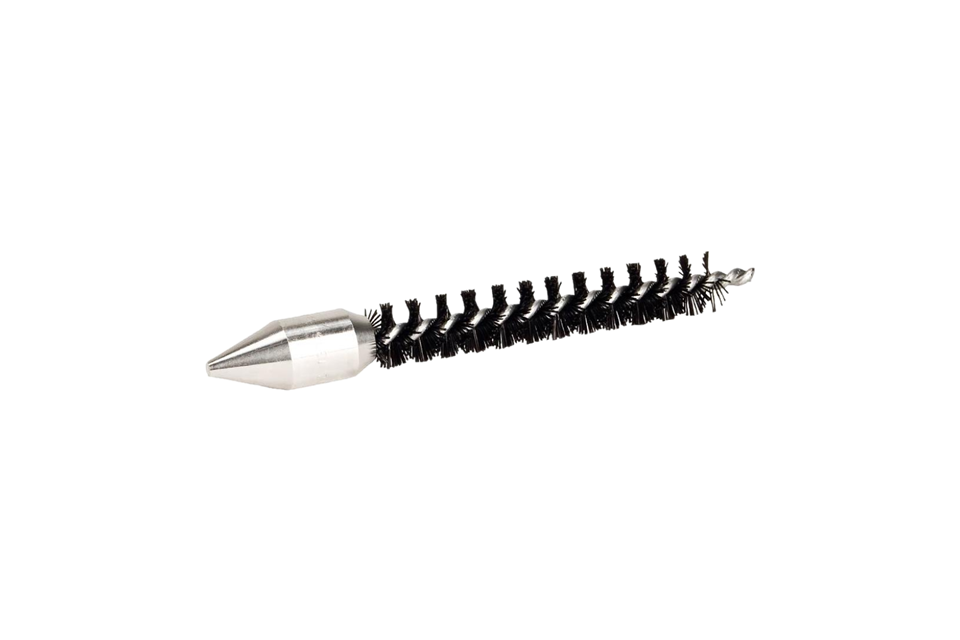

Tube Guides, also known as Tube Pilots, protect the tube end during installation of tubes into the shell of the heat exchanger and ensures accurate alignment of the tube while passing through the baffle plates.
- To 'Guide' the tube through the tube sheets and baffle plates during tube insertion
- High strength Nylon bristles holds Tube Guide firmly in tube
|
Tube OD |
Wall Gauge Range |
Tube Pilot |
|
|
mm |
inch |
||
|
12.7mm |
1/2" |
13-16 |
17.7012-13-16 |
|
12.7mm |
1/2" |
17-20 |
17.7012-17/20 |
|
15.9mm |
5/8" |
10-12 |
17.7016-10-12 |
|
15.9mm |
5/8" |
13-16 |
17.7012-13/16 |
|
15.9mm |
5/8" |
17-20 |
17.7016-17/20 |
|
19.1mm |
3/4" |
10-12 |
17.7019-10/12 |
|
19.1mm |
3/4" |
13-16 |
17.7019-13/16 |
|
19.1mm |
3/4" |
17-20 |
17.7019-17/20 |
|
22.2mm |
7/8" |
10-12 |
17.7022-10/12 |
|
22.2mm |
7/8" |
13-16 |
17.7022-13/16 |
|
22.2mm |
7/8" |
17-20 |
17.7022-17/20 |
|
25.4mm |
1" |
10-12 |
17.7025-10/12 |
|
25.4mm |
1" |
13-16 |
17.7025-13/16 |
|
25.4mm |
1" |
17-20 |
17.7025-17/20 |
|
28.6mm |
1-1/8" |
10-12 |
17.7028-10/12 |
|
28.6mm |
1-1/8" |
13-16 |
17.7028-13/16 |
|
28.6mm |
1-1/8" |
17-20 |
17.7028-17/20 |
|
31.8mm |
1-1/4" |
10-12 |
17.7032-10/12 |
|
31.8mm |
1-1/4" |
13-16 |
17.7032-13/16 |
|
31.8mm |
1-1/4" |
17-20 |
17.7032-17/20 |
|
38.1mm |
1-1/2" |
10-12 |
17.7038-10/12 |
|
38.1mm |
1-1/2" |
13-16 |
17.7038-13/16 |
|
38.1mm |
1-1/2" |
17-20 |
17.7038-17/20 |
