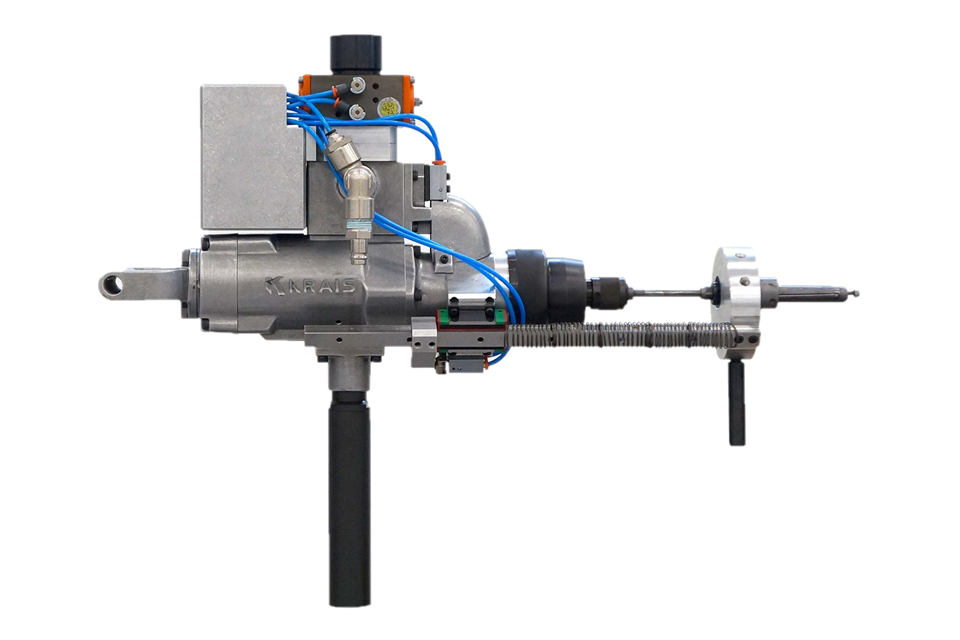

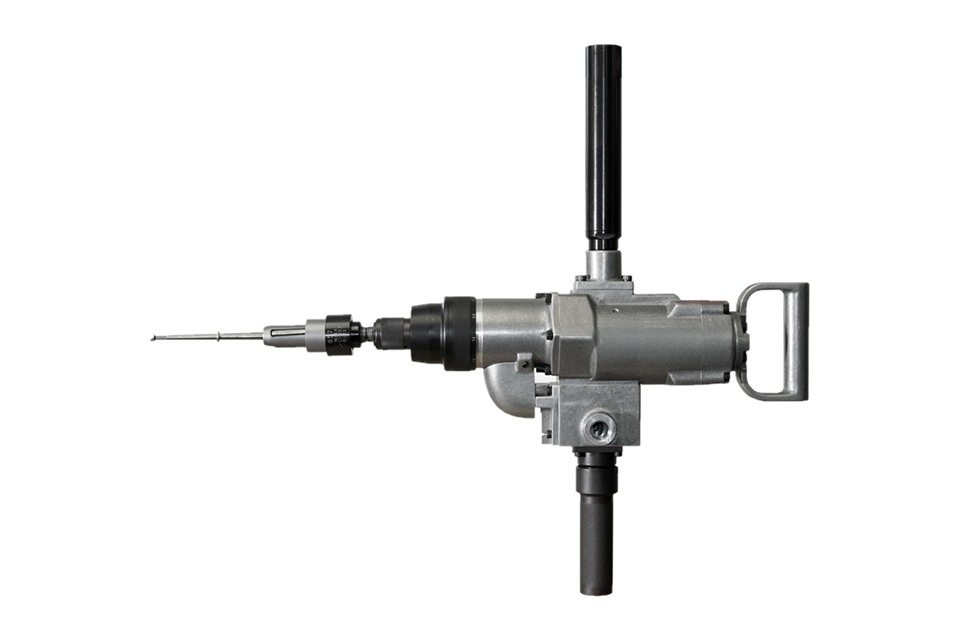

The K60 is a heavy-duty pneumatic torque-controlled motor for the expansion of tubes used in Heat Exchangers, Condensers, and Coolers.
This machine is particularly well suited to extended periods of operation.
It has a lightweight aluminium housing for easier handling and less operator fatigue.
The torque control clutch mechanism is easily set and ensures precise, repeat expansions over long periods of use.
Three machines are available to suit tubes of nominal sizes 1 ½”, 2” & 2 ½”
- Heavy duty & highly durable
- Ensures precise, repeat expansions
- Reliable & easy to use
- Automatic reverse trigger control
|
MODEL |
TUBE CAPACITY |
FREE SPEED |
MAX TORQUE |
LENGTH |
WEIGHT |
STANDARD |
OPTIONAL CHUCK SIZE |
|
|
K60-900 |
38.1mm |
1 ½” |
756 RPM |
41.6 NM 30.7 ft.lb |
457mm 18” |
12.25 KG 27 lbs |
3/8” 1/2" |
3/4" |
|
K60-400 |
50.8mm |
2” |
400 RPM |
82.5 NM 61 ft.lb |
457mm 18” |
12.25 KG 27 lbs |
3/4” 1" |
3/8" 1/2" |
|
K60-250 |
63.5mm |
2 ½” |
220 RPM |
135.5 NM 100 ft.lb |
457mm 18” |
12.25 KG 27 lbs |
3/4” 1" |
3/8" 1/2" |
Comparison chart
| Specification |  K60 |
K20 |
K50 |
K70 |
|---|---|---|---|---|
| Tube Capacity | 38.1mm to 63.5mm (1 1/2" to 2 1/2") |
6.3mm to 12.7mm (1/4" to 1/2") |
19mm to 32mm (3/4" to 1 1/4") |
50.8mm to 101.6mm (2" to 4") |
| Max Torque | 41.6NM to 135.5NM (30.7in.lb to 100in.lb) |
0.9 NM to 8.47NM (2.42 ft.lbs to 6.25ft.lbs) |
12.2NM to 36NM (108in.lb to 318in.lb) |
110NM to 410NM (85ft.lbs to 305ft.lbs) |
