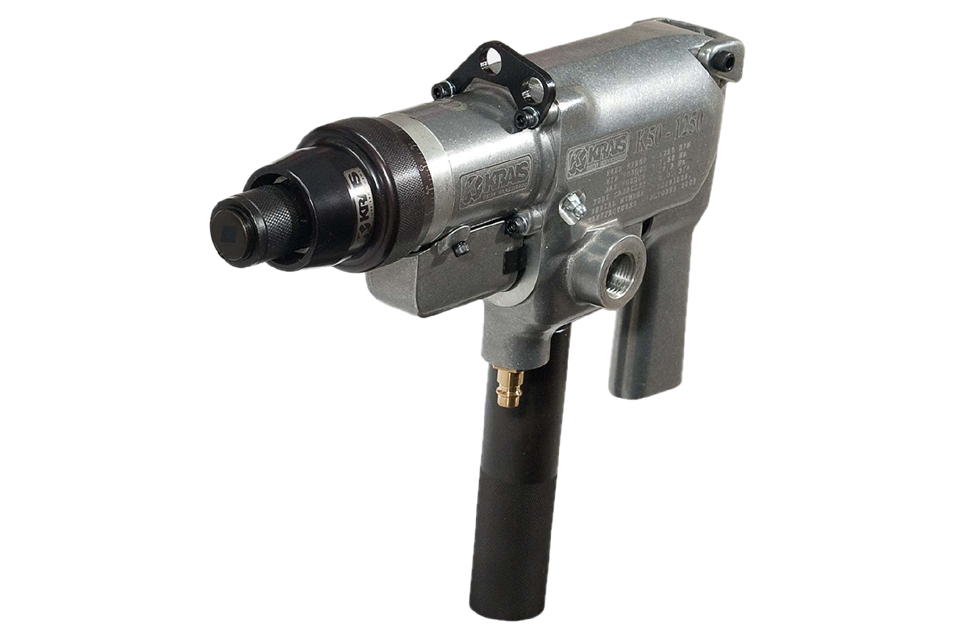

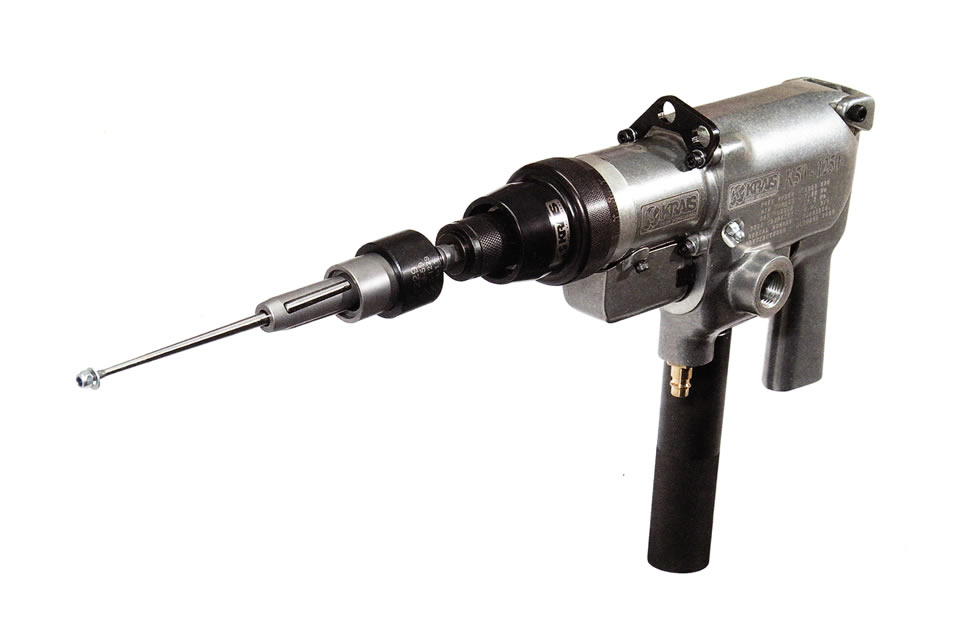

The K50 is a heavy duty pneumatic torque controlled motor for the expansion of tubes used in HeatExchangers, Condensers and Coolers.
This machine is particularly well suited to extended periods of operation. It features an ergonomically designed push/pull throttle mechanism to reduce operator fatigue.
The torque control clutch mechanism is easily set and ensures precise, repeat expansions over long periods of use.
Three machines are available to suit tubes of nominal sizes 3/4”, 1” and 1 ¼".
- Heavy duty & highly durable
- Ensures precise, repeat expansions
- Reliable & easy to use
- Automatic reverse trigger control
|
MODEL |
TUBE CAPACITY |
FREE SPEED |
MAX TORQUE |
LENGTH |
WEIGHT |
STANDARD CHUCK SIZE |
OPTIONAL CHUCK SIZE |
|
|
K50-1250 |
19mm |
3/4” |
1250 RPM |
12.2 NM 108 in.lb |
311mm 12 ¼” |
4.8 KG 10.5 lbs |
3/8” |
1/2" |
|
K50-600 |
25mm |
1” |
485 RPM |
21.8 NM 193 in.lb |
311mm 12 ¼” |
4.8 KG 10.5 lbs |
3/8” |
1/2" |
|
K50-400 |
32mm |
1 ¼” |
400 RPM |
36.0 NM 318 in.lb |
311mm 12 ¼” |
4.8 KG 10.5 lbs |
3/8” |
1/2" |
Comparison chart
| Specification |  K50 |
K20 |
K60 |
K70 |
|---|---|---|---|---|
| Tube Capacity | 19mm to 32mm (3/4" to 1 1/4") |
6.3mm to 12.7mm (1/4" to 1/2") |
38.1mm to 63.5mm (1 1/2" to 2 1/2") |
50.8mm to 101.6mm (2" to 4") |
| Max Torque | 12.2NM to 36NM (108in.lb to 318in.lb) |
0.9 NM to 8.47NM (2.42 ft.lbs to 6.25ft.lbs) |
41.6NM to 135.5NM (30.7in.lb to 100in.lb) |
110NM to 410NM (85ft.lbs to 305ft.lbs) |
