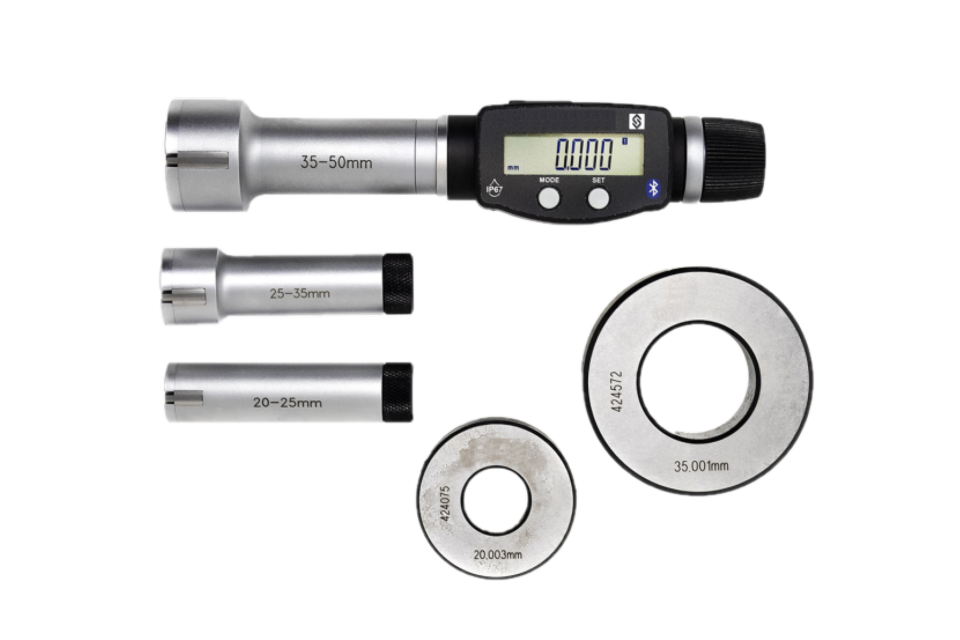

The XT3 digital bore gauge, equipped with Bluetooth functionality, is tailored for various industries including the heat exchanger and boiler sector.
Its 3-point contact ensures precise measurements pre- and post-tube expansion, vital for meeting requirements and establishing robust mechanical joints, crucial for vessel integrity and safety. With its digital capabilities and data export feature, this bore gauge can provide measurement data in a format to automate reporting processes.

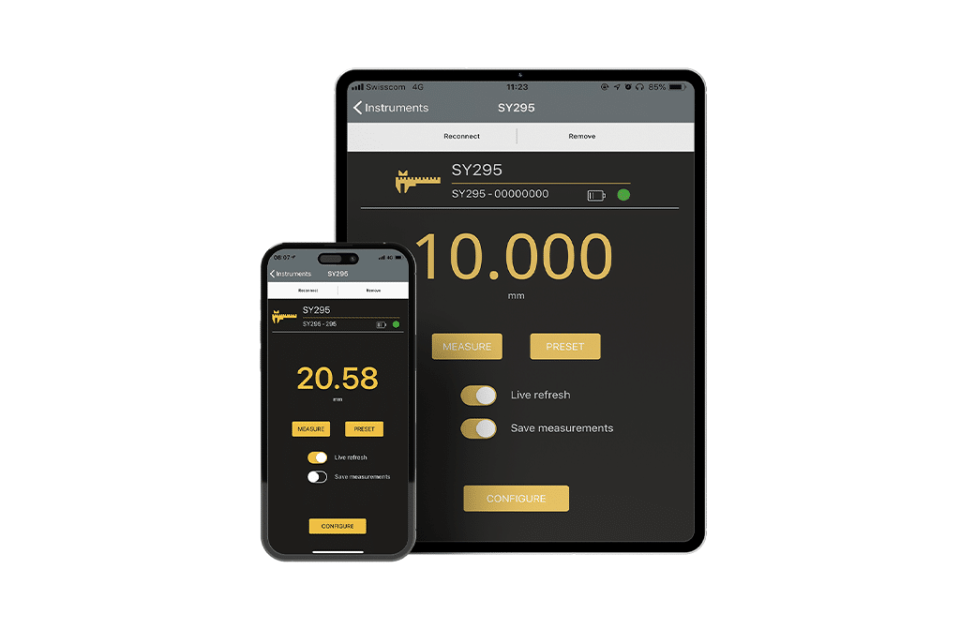

Take your measurements ANYWHERE
Say goodbye to pen and paper with instant data saving, eliminating transcription errors. Enjoy remote
display functionality for improved visibility, while your instrument doubles as a control station for portable
measurements. Effortlessly export data for comprehensive measurement history. Access instrument
information, set calibration, and receive battery level alerts for enhanced usability. Experience unmatched
convenience and accuracy with the free Slyvac Anywhere innovative third-party app integration.
- Ergonomic design with larger and clearer LCD display
- IP67 Electronics
- Simple 2-button operation
- 4 preset memories
- Proximity output with built-in Bluetooth
- Bi-directional communication
- Range 2-300mm (0.08" - 12")
- 2-6mm 2 point/60300,, 3 point measurement
- Resolution 0.001mm/0.00005"
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Extensions available above 6mm for deep hole measurement
- Ratchet stop to ensure consistent measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings and gauges
- Supplied in fitted wooden case
|
Product Code |
Range (mm) |
Accuracy (mm) |
Depth (mm) |
Setting Ring (mm) |
|
XTD1M-BT |
2 - 2.5mm |
0.004 |
9 |
2.5 |
|
XTD2M-BT |
2.5 - 3mm |
0.004 |
9 |
2.5 |
|
XTD3M-BT |
3 - 4mm |
0.004 |
12 |
4 |
|
XTD4M-BT |
4 - 5mm |
0.004 |
18 |
4 |
|
XTD5M-BT |
5 - 6mm |
0.004 |
18 |
5 |
|
XTD6M-BT |
6 - 8mm |
0.004 |
58 |
8 |
|
XTD8M-BT |
8 - 10mm |
0.004 |
58 |
8 |
|
XTD10M-BT |
10 - 12.5mm |
0.004 |
58 |
12.5 |
|
XTD12M-BT |
12.5 - 16mm |
0.004 |
62 |
12.5 |
|
XTD16M-BT |
16 - 20mm |
0.004 |
62 |
20 |
|
XTD20M-BT |
20 - 25mm |
0.004 |
66 |
20 |
|
XTD25M-BT |
25 - 35mm |
0.004 |
66 |
35 |
|
XTD35M-BT |
35 - 50mm |
0.004 |
80 |
35 |
|
XTD50M-BT |
50 - 65mm |
0.005 |
80 |
65 |
|
XTD65M-BT |
65 - 80mm |
0.005 |
80 |
65 |
|
XTD80M-BT |
80 - 100mm |
0.005 |
100 |
80 |
|

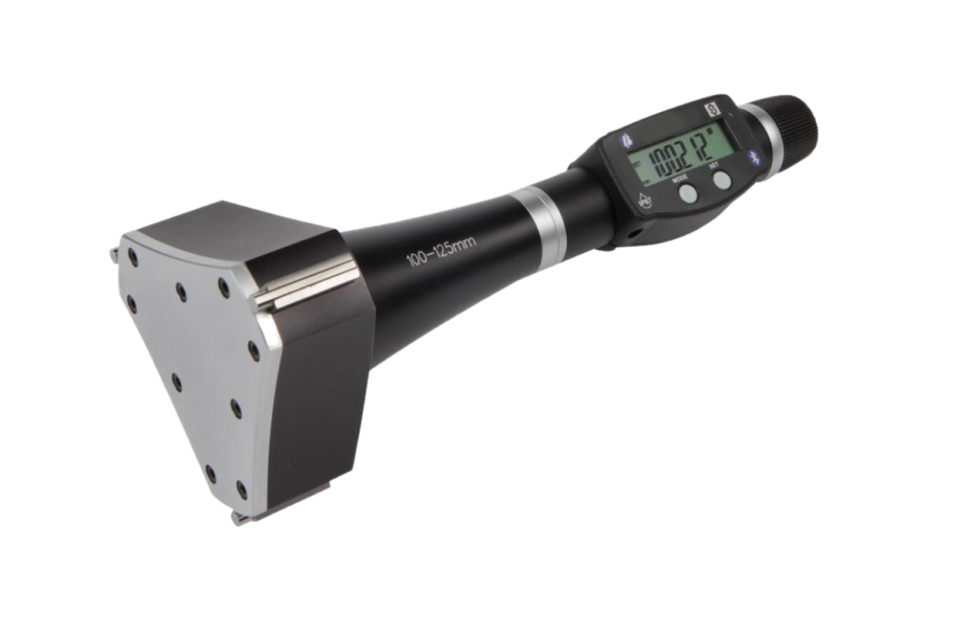

XTD100M-BT |
100 - 125mm |
0.006 |
115 |
125 |
|
XTD125M-BT |
125 - 150mm |
0.006 |
115 |
125 |
|
XTD150M-BT |
150 - 175mm |
0.007 |
115 |
175 |
|
XTD175M-BT |
175 - 200mm |
0.007 |
115 |
175 |
|
XTD200M-BT |
200 - 225mm |
0.008 |
118 |
225 |
|
XTD225M-BT |
225 - 250mm |
0.008 |
118 |
225 |
|
XTD250M-BT |
250 - 275mm |
0.009 |
118 |
275 |
|
XTD275M-BT |
275 - 300mm |
0.009 |
118 |
275 |
