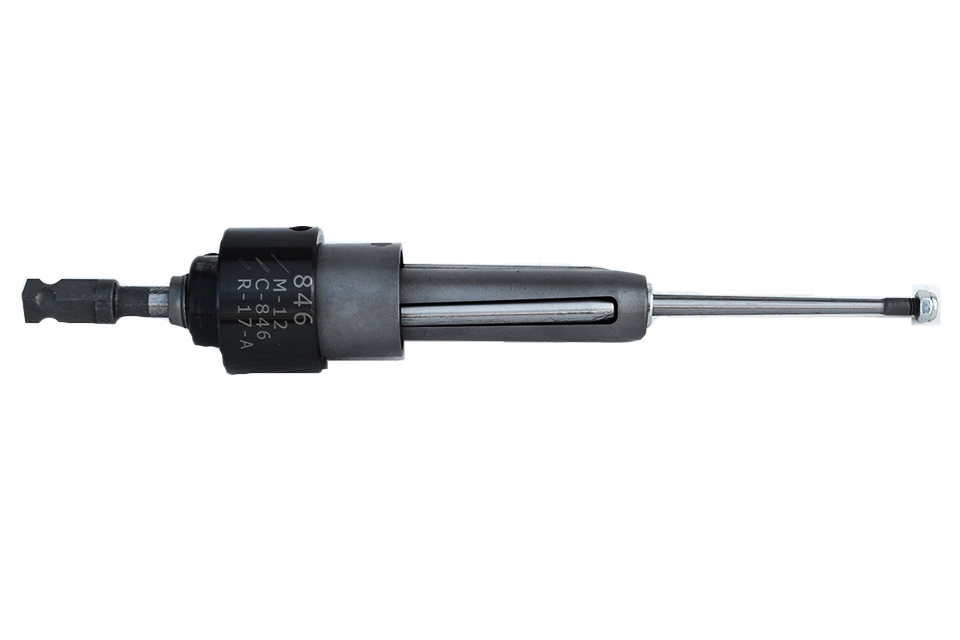

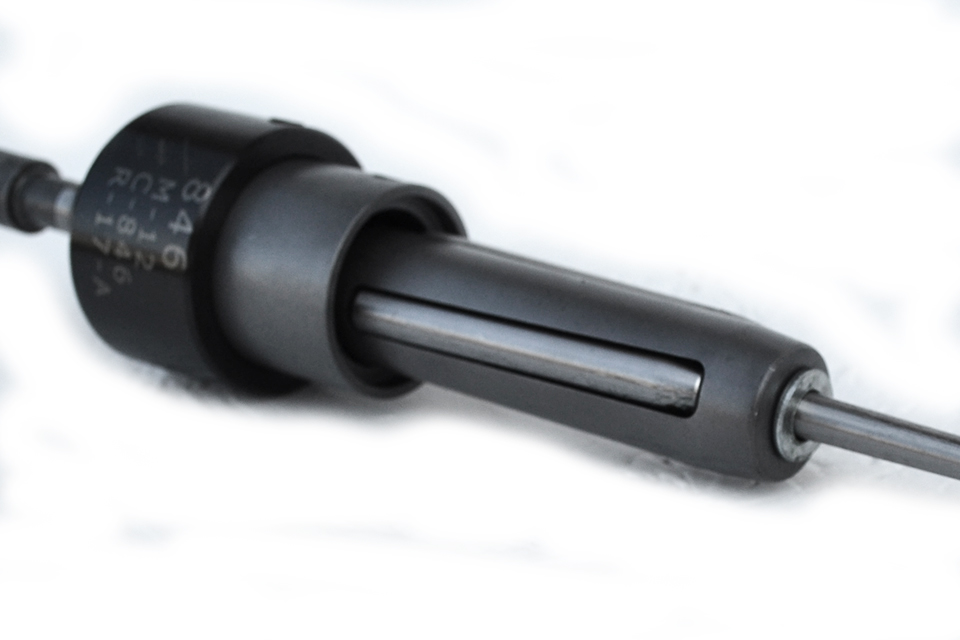

The 800 series tube expander is a highly versatile tool designed for expanding tubes across a wide range of sizes. Its product range covers tube sizes from 12.7mm (1/2") OD to 38.1mm (1 ½") OD, offering flexibility for various tubing dimensions. The expander is available with two roller options: 38.1mm (1 ½") or 57.1mm (2 ¼"), allowing for different project requirements. It is designed to work with tube sheet thicknesses ranging from 12.7mm (1/2") to 57.1mm (2 ¼"). Each expander features a reversible collar, with one side flush and the reverse side recessed by 3.2mm (1/8"). The 800 series tube expander is completely interchangeable with Airetool, Wicksteed, and Teco 800 expanders, offering compatibility and convenience. Additionally, 5-roll expanders are available upon request, providing further options for tube expansion tasks.
|
TUBE GAUGE |
TUBE I. D. |
MIN. EXPANSION |
MAX. EXPANSION |
TUBE SHEET THICKNESS |
MANDREL |
MANDREL SQUARE |
|||||||||
|
1/2" to 1-1/2" |
1-1/4" to 2-1/4" |
||||||||||||||
|
12.7 to 38.1 mm |
31.7 to 57.1mm |
||||||||||||||
|
[bwg] |
[inch] |
[mm] |
[inch] |
[mm] |
[inch] |
[mm] |
[inch] |
[mm] |
Tool No. |
Roll No. |
Tool No. |
Roll No. |
[inch] |
||
|
1/2" |
14 |
0.083 |
2.11 |
0.334 |
8.48 |
0.324 |
8.23 |
0.374 |
9.50 |
TR797 |
TR797 |
– |
– |
TR797 |
3/8" |
|
1/2" |
15 |
0.072 |
1.83 |
0.356 |
9.04 |
0.348 |
8.84 |
0.398 |
10.11 |
TR799 |
TRR-1 |
– |
– |
TR799 |
3/8" |
|
1/2" |
16 |
0.065 |
1.65 |
0.370 |
9.40 |
0.36 |
9.14 |
0.410 |
10.41 |
TR801 |
TRR-1 |
– |
– |
TRM-1 |
3/8" |
|
1/2" |
17 |
0.058 |
1.47 |
0.384 |
9.75 |
0.374 |
9.50 |
0.424 |
10.77 |
TR803 |
TRR-2 |
– |
– |
TRM-1 |
3/8" |
|
1/2" |
18 |
0.049 |
1.24 |
0.402 |
10.21 |
0.392 |
9.96 |
0.447 |
11.35 |
TR805 |
TRR-3 |
– |
– |
TRM-2 |
3/8" |
|
1/2" |
20 |
0.035 |
0.89 |
0.430 |
10.92 |
0.406 |
10.31 |
0.461 |
11.71 |
TR805 |
TRR-3 |
– |
– |
TRM-3 |
3/8" |
|
5/8" |
12 |
0.109 |
2.77 |
0.407 |
10.34 |
0.392 |
9.96 |
0.447 |
11.35 |
TR805 |
TRR-3 |
– |
– |
TRM-2 |
3/8" |
|
5/8" |
13 |
0.095 |
2.41 |
0.435 |
11.05 |
0.425 |
10.80 |
0.480 |
12.19 |
TR807 |
TRR-4 |
– |
– |
TRM-3 |
3/8" |
|
5/8" |
14 |
0.083 |
2.11 |
0.459 |
11.66 |
0.449 |
11.40 |
0.509 |
12.93 |
TR809 |
TRR-4 |
TR810 |
TRR-4-A |
TRM-4 |
3/8" |
|
5/8" |
15 |
0.072 |
1.83 |
0.481 |
12.22 |
0.471 |
11.96 |
0.536 |
13.61 |
TR811 |
TRR-5 |
TR812 |
TRR-5 A |
TRM-5 |
3/8" |
|
5/8" |
16 |
0.065 |
1.65 |
0.495 |
12.57 |
0.485 |
12.32 |
0.550 |
13.97 |
TR813 |
TRR-6 |
TR814 |
TRR-6 A |
TRM-5 |
3/8" |
|
5/8" |
17 |
0.058 |
1.47 |
0.509 |
12.93 |
0.499 |
12.67 |
0.564 |
14.33 |
TR815 |
TRR-6 |
TR816 |
TRR-6 A |
TRM-6 |
3/8" |
|
5/8" |
18 |
0.049 |
1.24 |
0.527 |
13.39 |
0.517 |
13.13 |
0.572 |
14.53 |
TR817 |
TRR-7 |
TR818 |
TRR-7-A |
TRM-7 |
3/8" |
|
5/8" |
19 |
0.042 |
1.07 |
0.541 |
13.74 |
0.522 |
13.26 |
0.582 |
14.78 |
TR819 |
TRR-7 |
TR820 |
TRR-7-A |
TRM-6 |
3/8" |
|
5/8" |
20 |
0.035 |
0.89 |
0.555 |
14.10 |
0.536 |
13.61 |
0.596 |
15.14 |
TR81 9 |
TRR-7 |
TR820 |
TRR-7-A |
TRM-8 |
3/8" |
|
5/8" |
21 |
0.032 |
0.81 |
0.561 |
14.25 |
0.536 |
13.61 |
0.596 |
15.14 |
TR819 |
TRR-7 |
TR820 |
TRR-7-A |
TRM-8 |
3/8" |
|
5/8" |
22 |
0.028 |
0.71 |
0.569 |
14.45 |
0.536 |
13.61 |
0.596 |
15.14 |
TR819 |
TRR-7 |
TR820 |
TRR-7-A |
TRM-8 |
3/8" |
|
3/4" |
10 |
0.134 |
3.40 |
0.482 |
12.24 |
0.471 |
11.96 |
0.536 |
13.61 |
TR811 |
TRR-5 |
TR812 |
TRR-5-A |
TRM-5 |
3/8" |
|
3/4" |
11 |
0.120 |
3.05 |
0.510 |
12.95 |
0.499 |
12.67 |
0.564 |
14.33 |
TR815 |
TRR-6 |
TR816 |
TRR-6-A |
TRM-6 |
3/8" |
|
3/4" |
12 |
0.109 |
2.77 |
0.532 |
13.51 |
0.522 |
13.26 |
0.582 |
14.78 |
TR819 |
TRR-7 |
TR820 |
TRR-7-A |
TRM-6 |
3/8" |
|
3/4" |
13 |
0.095 |
2.41 |
0.560 |
14.22 |
0.550 |
13.97 |
0.615 |
15.62 |
TR821 |
TRR-8 |
TR822 |
TRR-8-A |
TRM-8 |
3/8" |
|
3/4" |
14 |
0.083 |
2.11 |
0.584 |
14.83 |
0.574 |
14.58 |
0.639 |
16.23 |
TR823 |
TRR-9 |
TR824 |
TRR-9-A |
TRM-8 |
3/8" |
|
3/4" |
15 |
0.072 |
1.83 |
0.606 |
15.39 |
0.596 |
15.14 |
0.661 |
16.79 |
TR825 |
TRR-10 |
TR826 |
TRR-10-A |
TRM-8 |
3/8" |
|
3/4" |
16 |
0.065 |
1.65 |
0.620 |
15.75 |
0.605 |
15.37 |
0.685 |
17.40 |
TR827 |
TRR-10 |
TR828 |
TRR-10-A |
TRM-9 |
3/8" |
|
3/4" |
17 |
0.058 |
1.47 |
0.634 |
16.10 |
0.619 |
15.72 |
0.699 |
17.75 |
TR829 |
TRR-11 |
TR830 |
TRR-11-A |
TRM-9 |
3/8" |
|
3/4" |
18 |
0.049 |
1.24 |
0.652 |
16.56 |
0.619 |
15.72 |
0.699 |
17.75 |
TR829 |
TRR-11 |
TR830 |
TRR-11-A |
TRM-9 |
3/8" |
|
3/4" |
19 |
0.042 |
1.07 |
0.666 |
16.92 |
0.642 |
16.31 |
0.722 |
18.34 |
TR831 |
TRR-12 |
TR832 |
TRR-12-A |
TRM-9 |
3/8" |
|
3/4" |
20 |
0.035 |
0.89 |
0.680 |
17.27 |
0.642 |
16.31 |
0.722 |
18.34 |
TR831 |
TRR-12 |
TR832 |
TRR-12-A |
TRM-9 |
3/8" |
|
3/4" |
21 |
0.032 |
0.81 |
0.686 |
17.42 |
0.642 |
16.31 |
0.722 |
18.34 |
TR831 |
TRR-12 |
TR832 |
TRR-12-A |
TRM-9 |
3/8" |
|
3/4" |
22 |
0.028 |
0.71 |
0.694 |
17.63 |
0.642 |
16.31 |
0.722 |
18.34 |
TR831 |
TRR-12 |
TR832 |
TRR-12-A |
TRM-9 |
3/8" |
|
7/8" |
10 |
0.134 |
3.40 |
0.607 |
15.42 |
0.596 |
15.14 |
0.661 |
16.79 |
TR825 |
TRR-10 |
TR826 |
TRR-10-A |
TRM-8 |
3/8" |
|
7/8" |
11 |
0.120 |
3.05 |
0.635 |
16.13 |
0.619 |
15.72 |
0.699 |
17.75 |
TR829 |
TRR-11 |
TR830 |
TRR-11-A |
TRM-9 |
3/8" |
|
7/8" |
12 |
0.109 |
2.77 |
0.657 |
16.69 |
0.642 |
16.31 |
0.722 |
18.34 |
TR831 |
TRR-12 |
TR832 |
TRR-12-A |
TRM-9 |
3/8" |
|
7/8" |
13 |
0.095 |
2.41 |
0.685 |
17.40 |
0.670 |
17.02 |
0.750 |
19.05 |
TR833 |
TRR-13 |
TR834 |
TRR-13-A |
TRM-10 |
3/8" |
|
7/8" |
14 |
0.083 |
2.11 |
0.709 |
18.01 |
0.685 |
17.40 |
0.774 |
19.66 |
TR835 |
TRR-14 |
TR836 |
TRR-14-A |
TRM-11 |
3/8" |
|
7/8" |
15 |
0.072 |
1.83 |
0.731 |
18.57 |
0.712 |
18.08 |
0.801 |
20.35 |
TR837 |
TRR-15 |
TR838 |
TRR-15-A |
TRM-11 |
3/8" |
|
7/8" |
16 |
0.065 |
1.65 |
0.745 |
18.92 |
0.726 |
18.44 |
0.815 |
20.70 |
TR839 |
TRR-15 |
TR840 |
TRR-15-A |
TRM-12 |
3/8" |
|
7/8" |
17 |
0.058 |
1.47 |
0.759 |
19.28 |
0.740 |
18.80 |
0.829 |
21.06 |
TR843 |
TRR-16 |
TR844 |
TRR-16-A |
TRM-12 |
3/8" |
|
7/8" |
18 |
0.049 |
1.24 |
0.777 |
19.74 |
0.740 |
18.80 |
0.829 |
21.06 |
TR843 |
TRR-16 |
TR844 |
TRR-16-A |
TRM-12 |
3/8" |
|
1" |
8 |
0.165 |
4.19 |
0.670 |
17.02 |
0.655 |
16.64 |
0.735 |
18.67 |
TR841 |
TRR-13 |
TR842 |
TRR-13-A |
TRM-9 |
3/8" |
|
1" |
9 |
0.148 |
3.76 |
0.704 |
17.88 |
0.685 |
17.40 |
0.774 |
19.66 |
TR835 |
TRR-14 |
TR836 |
TRR-14-A |
TRM-11 |
3/8" |
|
1" |
10 |
0.134 |
3.40 |
0.732 |
18.59 |
0.712 |
18.08 |
0.801 |
20.35 |
TR837 |
TRR-15 |
TR838 |
TRR-15-A |
TRM-11 |
3/8" |
|
1" |
11 |
0.120 |
3.05 |
0.760 |
19.30 |
0.740 |
18.80 |
0.829 |
21.06 |
TR843 |
TRR-16 |
TR844 |
TRR-16-A |
TRM-12 |
3/8" |
|
1" |
12 |
0.109 |
2.77 |
0.782 |
19.86 |
0.763 |
19.38 |
0.852 |
21.64 |
TR845 |
TRR-17 |
TR846 |
TRR-17-A |
TRM-12 |
3/8" |
|
1" |
13 |
0.095 |
2.41 |
0.810 |
20.57 |
0.791 |
20.09 |
0.880 |
22.35 |
TR847 |
TRR-18 |
TR848 |
TRR-18-A |
TRM-12 |
3/8" |
|
1" |
14 |
0.083 |
2.11 |
0.834 |
21.18 |
0.810 |
20.57 |
0.909 |
23.09 |
TR849 |
TRR-18 |
TR850 |
TRR-18-A |
TRM-13 |
3/8" |
|
1" |
15 |
0.072 |
1.83 |
0.856 |
21.74 |
0.837 |
21.26 |
0.936 |
23.77 |
TR851 |
TRR-19 |
TR852 |
TRR-19-A |
TRM-13 |
3/8" |
|
1" |
16 |
0.065 |
1.65 |
0.870 |
22.10 |
0.837 |
21.26 |
0.936 |
23.77 |
TR851 |
TRR-19 |
TR852 |
TRR-19-A |
TRM-13 |
3/8" |
|
1" |
17 |
0.058 |
1.47 |
0.884 |
22.45 |
0.865 |
21.97 |
0.964 |
24.49 |
TR855 |
TRR-21 |
TR856 |
TRR-21-A |
TRM-13 |
3/8" |
|
1" |
18 |
0.049 |
1.24 |
0.902 |
22.91 |
0.865 |
21.97 |
0.964 |
24.49 |
TR855 |
TRR-21 |
TR856 |
TRR-21-A |
TRM-13 |
3/8" |
|
1" |
19 |
0.042 |
1.07 |
0.916 |
23.27 |
0.865 |
21.97 |
0.964 |
24.49 |
TR855 |
TRR-21 |
TR856 |
TRR-21-A |
TRM-13 |
3/8" |
|
1" |
20 |
0.035 |
0.89 |
0.930 |
23.62 |
0.865 |
21.97 |
0.964 |
24.49 |
TR855 |
TRR-21 |
TR856 |
TRR-21-A |
TRM-13 |
3/8" |
|
1-1/8" |
8 |
0.165 |
4.19 |
0.795 |
20.19 |
0.776 |
19.71 |
0.875 |
22.23 |
TR853 |
TRR-20 |
TR854 |
TRR-20-A |
TRM-13 |
3/8" |
|
1-1/8" |
9 |
0.148 |
3.76 |
0.829 |
21.06 |
0.810 |
20.57 |
0.909 |
23.09 |
TR849 |
TRR-18 |
TR850 |
TRR-18-A |
TRM-13 |
3/8" |
|
1-1/8" |
10 |
0.134 |
3.40 |
0.857 |
21.77 |
0.837 |
21.26 |
0.936 |
23.77 |
TR851 |
TRR-19 |
TR852 |
TRR-19-A |
TRM-13 |
3/8" |
|
1-1/8" |
11 |
0.120 |
3.05 |
0.885 |
22.48 |
0.865 |
21.97 |
0.964 |
24.49 |
TR855 |
TRR-21 |
TR856 |
TRR-21-A |
TRM-13 |
3/8" |
|
1-1/8" |
12 |
0.109 |
2.77 |
0.907 |
23.04 |
0.883 |
22.43 |
0.982 |
24.94 |
TR857 |
TRR-21 |
TR858 |
TRR-21-A |
TRM-14 |
1/2" |
|
1-1/8" |
13 |
0.095 |
2.41 |
0.935 |
23.75 |
0.916 |
23.27 |
1.015 |
25.78 |
TR859 |
TRR-22 |
TR860 |
TRR-22-A |
TRM-14 |
1/2" |
|
1-1/8" |
14 |
0.083 |
2.11 |
0.959 |
24.36 |
0.935 |
23.75 |
1.044 |
26.52 |
TR861 |
TRR-23 |
TR862 |
TRR-23-A |
TRM-15 |
1/2" |
|
1-1/8" |
15 |
0.072 |
1.83 |
0.981 |
24.92 |
0.962 |
24.43 |
1.071 |
27.20 |
TR863 |
TRR-24 |
TR864 |
TRR-24-A |
TRM-15 |
1/2" |
|
1-1/8" |
16 |
0.065 |
1.65 |
0.995 |
25.27 |
0.962 |
24.43 |
1.071 |
27.20 |
TR863 |
TRR-24 |
TR864 |
TRR-24-A |
TRM-15 |
1/2" |
|
1-1/8" |
17 |
0.058 |
1.47 |
1.009 |
25.63 |
0.990 |
25.15 |
1.099 |
27.91 |
TR867 |
TRR-26 |
TR868 |
TRR-26-A |
TRM-16 |
1/2" |
|
1-1/8" |
18 |
0.049 |
1.24 |
1.027 |
26.09 |
0.990 |
25.15 |
1.099 |
27.91 |
TR867 |
TRR-26 |
TR868 |
TRR-26-A |
TRM-16 |
1/2" |
|
1-1/4" |
8 |
0.165 |
4.19 |
0.92 |
23.37 |
0.901 |
22.89 |
1.010 |
25.65 |
TR865 |
TRR-25 |
TR866 |
TRR-25-A |
TRM-15 |
1/2" |
|
1-1/4" |
9 |
0.148 |
3.76 |
0.954 |
24.23 |
0.935 |
23.75 |
1.044 |
26.52 |
TR861 |
TRR-23 |
TR862 |
TRR-23-A |
TRM-15 |
1/2" |
|
1-1/4" |
10 |
0.134 |
3.40 |
0.982 |
24.94 |
0.962 |
24.43 |
1.071 |
27.20 |
TR863 |
TRR-24 |
TR864 |
TRR-24-A |
TRM-15 |
1/2" |
|
1-1/4" |
11 |
0.120 |
3.05 |
1.010 |
25.65 |
0.990 |
25.15 |
1.099 |
27.91 |
TR867 |
TRR-26 |
TR868 |
TRR-26-A |
TRM-16 |
1/2" |
|
1-1/4" |
12 |
0.109 |
2.77 |
1.032 |
26.21 |
1.013 |
25.73 |
1.122 |
28.50 |
TR869 |
TRR-27 |
TR870 |
TRR-27-A |
TRM-16 |
1/2" |
|
1-1/4" |
13 |
0.095 |
2.41 |
1.060 |
26.92 |
1.041 |
26.44 |
1.150 |
29.21 |
TR871 |
TRR-28 |
TR872 |
TRR-28-A |
TRM-17 |
1/2" |
|
1-1/4" |
14 |
0.083 |
2.11 |
1.084 |
27.53 |
1.060 |
26.92 |
1.169 |
29.69 |
TR873 |
TRR-29 |
TR874 |
TRR-29-A |
TRM-17 |
1/2" |
|
1-1/4" |
15 |
0.072 |
1.83 |
1.106 |
28.09 |
1.087 |
27.61 |
1.196 |
30.38 |
TR875 |
TRR-30 |
TR876 |
TRR-30-A |
TRM-17 |
1/2" |
|
1-1/4" |
16 |
0.065 |
1.65 |
1.12 |
28.45 |
1.087 |
27.61 |
1.196 |
30.38 |
TR875 |
TRR-30 |
TR876 |
TRR-30-A |
TRM-17 |
1/2" |
|
1-1/4" |
17 |
0.058 |
1.47 |
1.134 |
28.80 |
1.115 |
28.32 |
1.224 |
31.09 |
TR879 |
TRR-30 |
TR880 |
TRR-30-A |
TRM-18 |
1/2" |
|
1-1/4" |
18 |
0.049 |
1.24 |
1.152 |
29.26 |
1.115 |
28.32 |
1.224 |
31.09 |
TR879 |
TRR-30 |
TR880 |
TRR-30-A |
TRM-18 |
1/2" |
|
1-3/8" |
8 |
0.165 |
4.19 |
1.045 |
26.54 |
1.026 |
26.06 |
1.135 |
28.83 |
TR877 |
TRR-31 |
TR878 |
TRR-31-A |
TRM-17 |
1/2" |
|
1-3/8" |
9 |
0.148 |
3.76 |
1.079 |
27.41 |
1.060 |
26.92 |
1.169 |
29.69 |
TR873 |
TRR-29 |
TR874 |
TRR-29-A |
TRM-17 |
1/2" |
|
1-3/8" |
10 |
0.134 |
3.40 |
1.107 |
28.12 |
1.087 |
27.61 |
1.196 |
30.38 |
TR875 |
TRR-30 |
TR876 |
TRR-30-A |
TRM-17 |
1/2" |
|
1-3/8" |
11 |
0.120 |
3.05 |
1.135 |
28.83 |
1.115 |
28.32 |
1.224 |
31.09 |
TR879 |
TRR-30 |
TR880 |
TRR-30-A |
TRM-18 |
1/2" |
|
1-3/8" |
12 |
0.109 |
2.77 |
1.157 |
29.39 |
1.133 |
28.78 |
1.242 |
31.55 |
TR881 |
TRR-32 |
TR882 |
TRR-32-A |
TRM-18 |
1/2" |
|
1-3/8" |
13 |
0.095 |
2.41 |
1.185 |
30.10 |
1.160 |
29.46 |
1.275 |
32.39 |
TR883 |
TRR-33 |
TR884 |
TRR-33-A |
TRM-19 |
1/2" |
|
1-3/8" |
14 |
0.083 |
2.11 |
1.209 |
30.71 |
1.179 |
29.95 |
1.294 |
32.87 |
TR885 |
TRR-34 |
TR886 |
TRR-34-A |
TRM-20 |
1/2" |
|
1-3/8" |
15 |
0.072 |
1.83 |
1.231 |
31.27 |
1.206 |
30.63 |
1.321 |
33.55 |
TR887 |
TRR-35 |
TR888 |
TRR-35-A |
TRM-20 |
1/2" |
|
1-3/8" |
16 |
0.065 |
1.65 |
1.245 |
31.62 |
1.206 |
30.63 |
1.321 |
33.55 |
TR887 |
TRR-35 |
TR888 |
TRR-35-A |
TRM-20 |
1/2" |
|
1-1/2" |
8 |
0.165 |
4.19 |
1.170 |
29.72 |
1.145 |
29.08 |
1.260 |
32.00 |
TR889 |
TRR-34 |
TR890 |
TRR-34-A |
TRM-19 |
1/2" |
|
1-1/2" |
9 |
0.148 |
3.76 |
1.204 |
30.58 |
1.145 |
29.08 |
1.294 |
32.87 |
TR885 |
TRR-34 |
TR886 |
TRR-34-A |
TRM-20 |
1/2" |
|
1-1/2" |
10 |
0.134 |
3.40 |
1.232 |
31.29 |
1.206 |
30.63 |
1.321 |
33.55 |
TR887 |
TRR-35 |
TR888 |
TRR-35-A |
TRM-20 |
1/2" |
|
1-1/2" |
11 |
0.120 |
3.05 |
1.260 |
32.00 |
1.235 |
31.37 |
1.350 |
34.29 |
TR891 |
TRR-36 |
TR892 |
TRR-36-A |
TRM-20 |
1/2" |
|
1-1/2" |
12 |
0.109 |
2.77 |
1.282 |
32.56 |
1.257 |
31.93 |
1.372 |
34.85 |
TR893 |
TRR-37 |
TR894 |
TRR-37-A |
TRM-20 |
1/2" |
|
1-1/2" |
13 |
0.095 |
2.41 |
1.310 |
33.27 |
1.285 |
32.64 |
1.400 |
35.56 |
TR895 |
TRR-37 |
TR896 |
TRR-37-A |
TRM-21 |
1/2" |
|
1-1/2" |
14 |
0.083 |
2.11 |
1.334 |
33.88 |
1.285 |
32.64 |
1.400 |
35.56 |
TR895 |
TRR-37 |
TR896 |
TRR-37-A |
TRM-21 |
1/2" |
|
1-1/2" |
15 |
0.072 |
1.83 |
1.356 |
34.44 |
1.331 |
33.81 |
1.446 |
36.73 |
TR897 |
TRR-38 |
TR898 |
TRR-38-A |
TRM-21 |
1/2" |
|
1-1/2" |
16 |
0.065 |
1.65 |
1.370 |
34.80 |
1.331 |
33.81 |
1.446 |
36.73 |
TR897 |
TRR-38 |
TR898 |
TRR-38-A |
TRM-21 |
1/2" |
|
1-1/2" |
17 |
0.058 |
1.47 |
1.384 |
35.15 |
1.331 |
33.81 |
1.472 |
37.39 |
TR899 |
TRR-38 |
TR900 |
TRR-38-A |
TRM-22 |
1/2" |
|
1-1/2" |
18 |
0.049 |
1.24 |
1.402 |
35.61 |
1.331 |
33.81 |
1.472 |
37.39 |
TR899 |
TRR-38 |
TR900 |
TRR-38-A |
TRM-22 |
1/2" |
|
1-1/2" |
19 |
0.042 |
1.07 |
1.416 |
35.97 |
1.331 |
33.81 |
1.472 |
37.39 |
TR899 |
TRR-38 |
TR900 |
TRR-38-A |
TRM-22 |
1/2" |
|
1-1/2" |
20 |
0.035 |
0.89 |
1.430 |
36.32 |
1.331 |
33.81 |
1.472 |
37.39 |
TR899 |
TRR-38 |
TR900 |
TRR-38-A |
TRM-22 |
1/2" |
Other Related Products
900 Series
Find out more
1300 Series
Find out more
1200 Series
Find out more
Roll Motors
Find out moreUnlock Your Project's Potential
Ready to take your project to the next level? Reach out to us now to get started! Whether you need reliable products or expert guidance, our team is here to assist you every step of the way.
Don't miss out on our comprehensive offerings. Contact us today by clicking the button below. Let's discuss your project requirements and find the perfect solution tailored to your needs.
Unlock your project's potential
Get in Touch...
