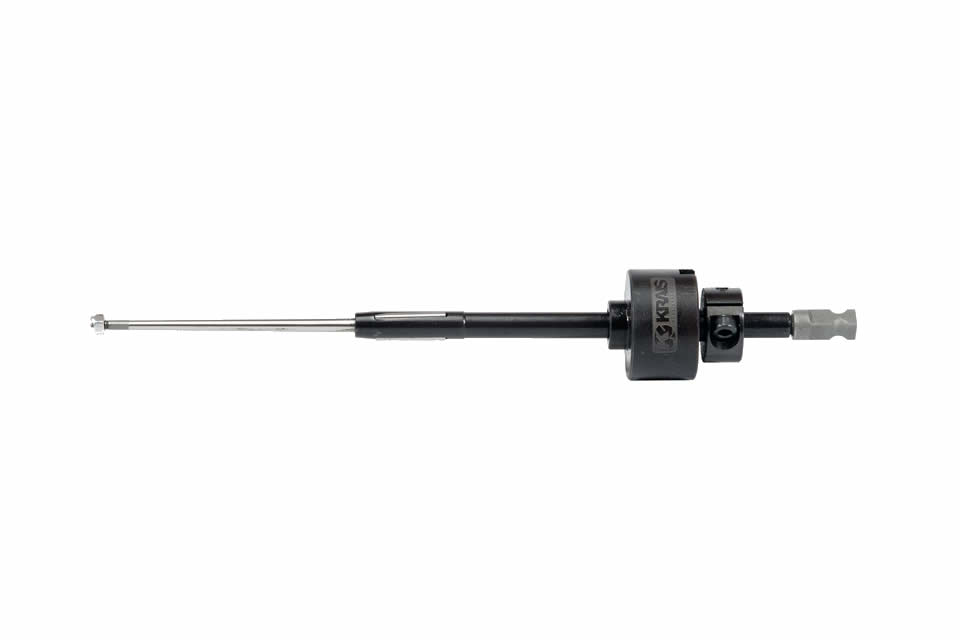

The 1300 series tube expander is a reliable and efficient tool specifically designed for expanding tubes with an outer diameter (OD) of 9.53mm (3/8"). Its product range focuses on this particular tube size, ensuring precise and accurate tube expansion. The 1300 series tube expander is available with two roll length options: 19mm (¾") and 32mm (1 ¼"), catering to various project requirements. It is compatible with tube sheet thicknesses ranging from 3.18mm (1/8") to 84.9mm (3.35"), offering versatility and adaptability for a wide range of applications. With its robust construction and flexibility, the 1300 series tube expander is a reliable choice for efficient tube expansion tasks.
TUBE GAUGE |
TUBE I. D. |
MIN. EXPANSION |
MAX. EXPANSION |
TUBE SHEET THICKNESS |
MANDREL |
MANDREL SQUARE |
|||||||||
1/2" to 1-1/2" |
1-1/4" to 2-1/4" |
||||||||||||||
12.7 to 38.1 mm |
31.7 to 57.1mm |
||||||||||||||
[bwg] |
[inch] |
[mm] |
[inch] |
[mm] |
[inch] |
[mm] |
[inch] |
[mm] |
Tool No. |
Roll No. |
Tool No. |
Roll No. |
[inch] |
||
3/8" mm |
15 |
0.072 |
1.83 |
0.231 |
5.87 |
0.230 |
5.84 |
0.265 |
6.73 |
TR-1315 |
TRR-1315 |
TR-1316 |
TRR-1316 |
TRM-86 |
1/4” |
3/8" mm |
16 |
0.065 |
1.65 |
0.245 |
6.22 |
0.240 |
6.10 |
0.275 |
6.99 |
TR-1319 |
TRR-1315 |
TR-1319L |
TRR1319L |
TRM-86 |
1/4” |
3/8" mm |
17 |
0.058 |
1.47 |
0.259 |
6.58 |
0.255 |
6.48 |
0.289 |
7.34 |
TR-1317 |
TRR-903 |
TR-1318 |
TRR-904 |
TRM-88 |
1/4” |
3/8" mm |
18 |
0.049 |
1.24 |
0.277 |
7.04 |
0.272 |
6.91 |
0.307 |
7.80 |
TR-1301 |
TRR-903 |
TR-1302 |
TRR-904 |
TRM-80 |
1/4” |
3/8" mm |
19 |
0.042 |
1.07 |
0.291 |
7.39 |
0.286 |
7.26 |
0.320 |
8.13 |
TR-1303 |
TRR-903 |
TR-1304 |
TRR-904 |
TRM-81 |
1/4” |
3/8" mm |
20 |
0.035 |
0.89 |
0.305 |
7.75 |
0.300 |
7.62 |
0.334 |
8.48 |
TR-1305 |
TRR-907 |
TR-1306 |
TRR-908 |
TRM-82 |
1/4” |
3/8" mm |
21 |
0.032 |
0.81 |
0.311 |
7.90 |
0.306 |
7.77 |
0.340 |
8.64 |
TR-1307 |
TRR-907 |
TR-1308 |
TRR-908 |
TRM-83 |
1/4” |
3/8" mm |
22 |
0.028 |
0.71 |
0.319 |
8.10 |
0.314 |
7.98 |
0.349 |
8.86 |
TR-1309 |
TRR-909 |
TR-1310 |
TRR-910 |
TRM-84 |
1/4” |
3/8" mm |
23 |
0.025 |
0.64 |
0.325 |
8.26 |
0.320 |
8.13 |
0.357 |
9.07 |
TR-1311 |
TRR-911 |
TR-1312 |
TRR-912 |
TRM-84 |
1/4” |
3/8" mm |
24 |
0.022 |
0.56 |
0.331 |
8.41 |
0.319 |
8.10 |
0.357 |
9.07 |
TR-1311 |
TRR-911 |
TR-1312 |
TRR-912 |
TRM-84 |
1/4” |
