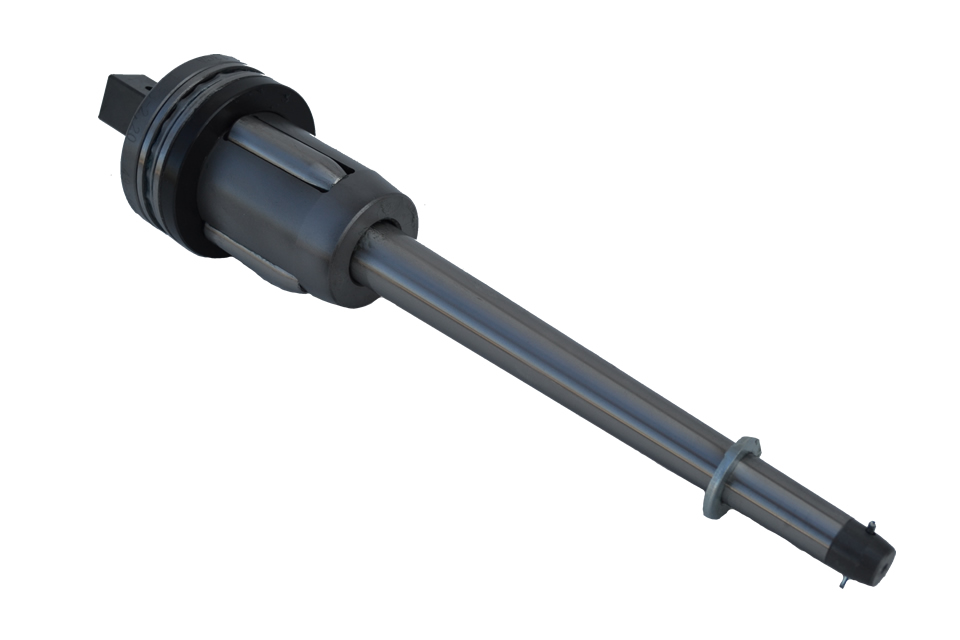

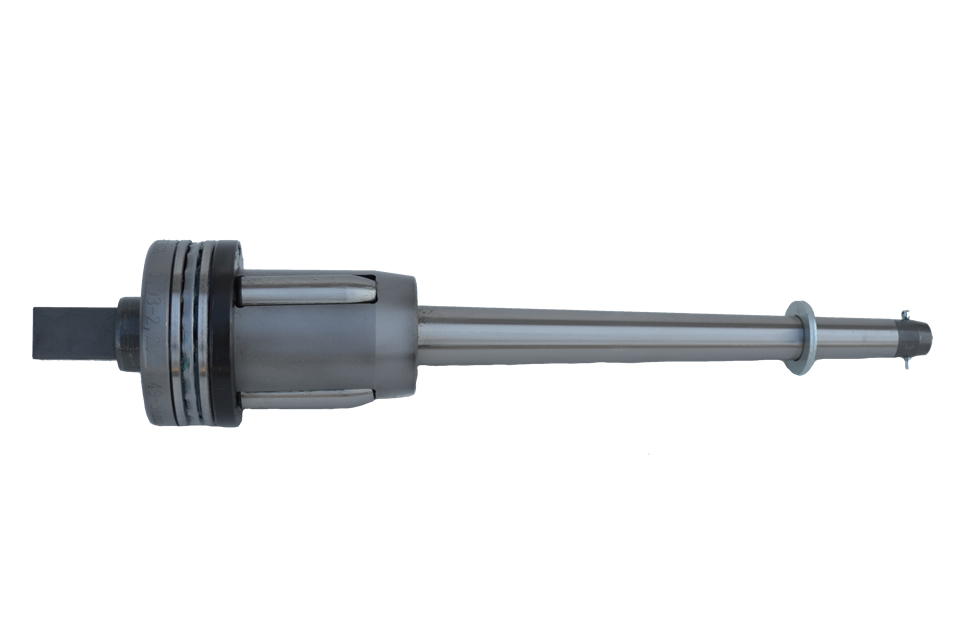

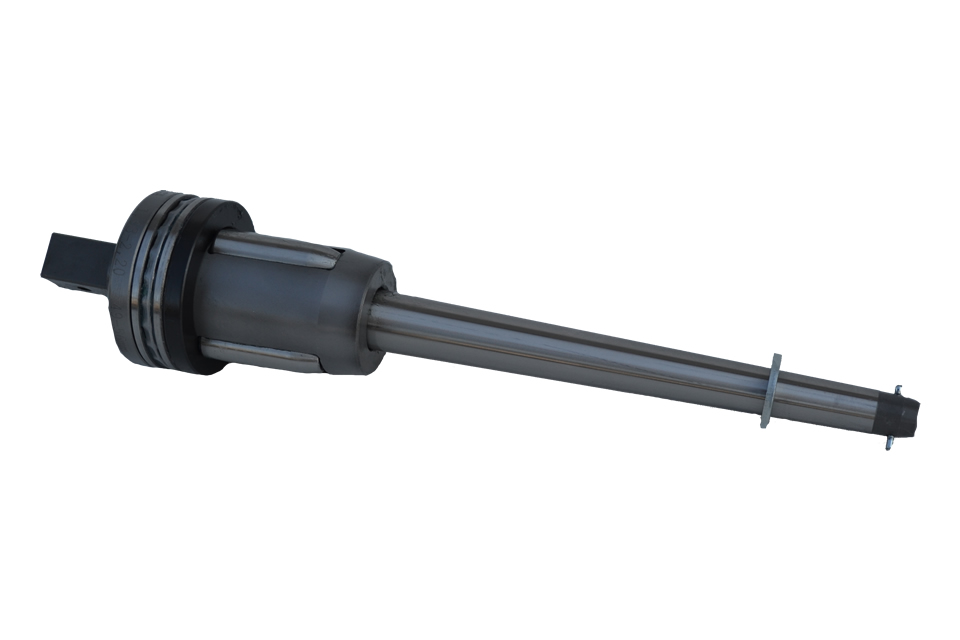

The PBE Parallel Boiler Series tube expander is specifically designed for expanding tubes in Fire and Water Tube Boilers. It is an ideal tool for both re-rolling leaky tubes and expanding new tubes. This series of tube expanders is engineered to provide efficient and effective tube expansion, ensuring proper sealing and improved boiler performance. With its specialized design and functionality, the PBE Parallel Boiler Series tube expander is a reliable choice for boiler maintenance and installation, helping to optimize the performance and reliability of fire and water tube boilers.

Specification Table

EXPANDER SIZE	EXPANSION RANGE mm	ROLLS	STANDARD ROLL LENGTH mm *	MANDREL	SHORT MANDREL SET (3PCS)	SQUARE DRIVE SIZE
PBE – 19	19 – 22mm	RR12	42mm	TK19	--	½”
PBE – 20	20 – 23mm	RR12	42mm	TK20	--	½”
PBE – 22	22 – 25mm	RR13	42mm	TK22	--	½”
PBE – 25	25 – 28mm	RR13	42mm	TK25	--	½”
PBE – 28	28 – 32mm	RR16	42mm	TK28	--	¾”
PBE – 29	29 – 33mm	RR16	42mm	TK29	--	¾”
PBE – 30	30 –34mm	RR16	42mm	TK30	--	¾”
PBE – 32	32 – 36mm	RR17	42mm	TK32	--	¾”
PBE – 35	35 – 41mm	RR21	42mm	TK37	TKK37	¾”
PBE – 37	37 – 43mm	RR22	42mm	TK37	TKK37	¾”
PBE – 40	40 – 46mm	RR40	50mm	TK42	TKK42	¾”
PBE – 42	42 – 48mm	RR23	50mm	TK42	TKK42	¾”
PBE – 44	44 – 50mm	RR23	50mm	TK44	TKK44	¾”
PBE – 47	47 – 54mm	RR24	50mm	TK47	TKK47	¾”
PBE – 49	49 – 56mm	RR24	50mm	TK49	TKK49	¾”
PBE – 52	52 – 59mm	RR25	50mm	TK49	TKK49	¾”
PBE – 54	54 – 62mm	RR26	50mm	TK54	TKK54	¾”
PBE – 57	57 – 66mm	RR27	50mm	TK57	TKK57	¾”
PBE – 60	60 – 69mm	RR28	50mm	TK57	TKK57	¾”
PBE – 65	65 – 74mm	RR29	50mm	TK65	TKK65	¾”
PBE – 68	68 – 78mm	RR30	50mm	TK72	TKK72	1”
PBE – 72	72 – 82mm	RR31	50mm	TK72	TKK72	1”
PBE – 77	77 –87mm	RR32	50mm	TK77	TKK77	1”
PBE – 82	82 – 92mm	RR33	50mm	TK82	TKK82	1”
PBE – 86	86 – 96mm	RR34	50mm	TK86	TKK86	1”
PBE – 90	90 – 102mm	RR34	50mm	TK90	TKK90	1”
PBE – 96	96 –108mm	RR35	50mm	TK96	TKK96	1”
