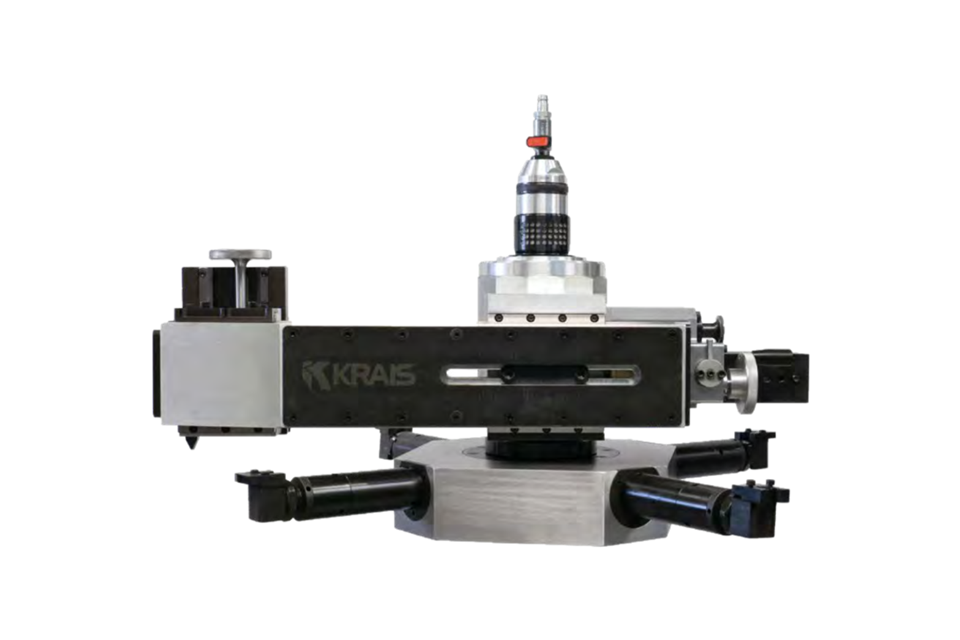

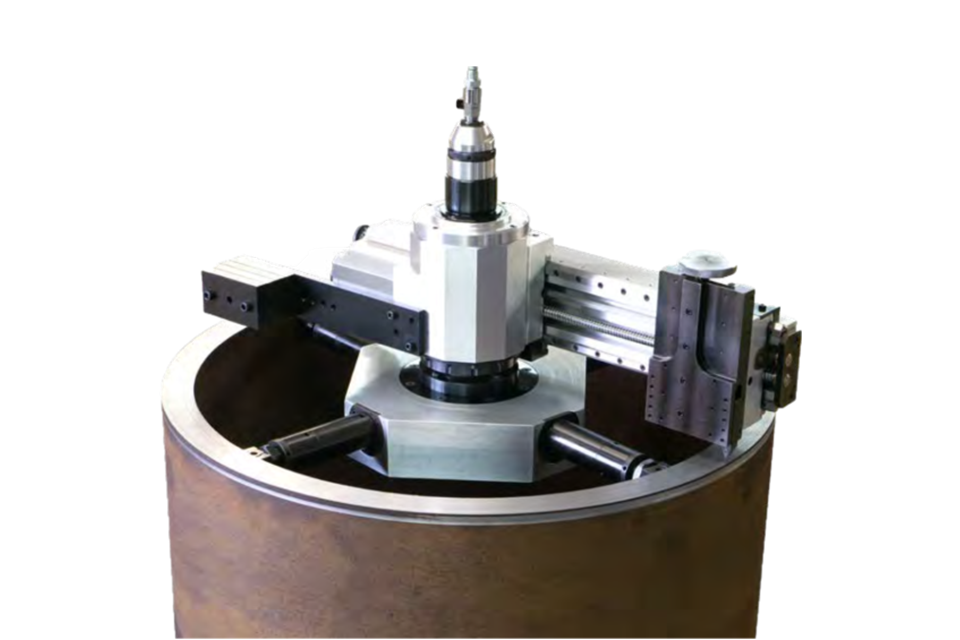

Internally mounted, lightweight, and durable machine tool. Ideal for machining all types of flange faces, seal grooves, weld preparations, and counterbores.
As standard, the IMFM-40 is supplied with a complete toolkit, including tools and inserts, an air filter with lubricator and hose connection, required jaws to cover the full range, a paper manual, and a storage/shipping box. Besides the standard pneumatic 2.2Hp drive, we offer a wide range of pneumatic and electric drives for the IMFM-40.
- Heavy-duty steel/aluminium design with solid but lightweight construction
- High rigidity of the machine in relation to the dimension and weight
- Continuous groove-facing feeds
- Swivel tool post for grooves, RTJ flanges and bevels
- Easy levelling and centring system with built-in self-centre feature
- Quick clamping with solid 50mm self-centring steel shaft
- CE certified
Comparison chart
| Specification |  IMFM-40 - Flange Facer |
IMFM-24 |
IMFM-30 |
IMFM-60 |
|---|---|---|---|---|
| ID Locking Range | 4.72" - 32.2" (120-820mm) |
4" - 20" (100-508mm) |
5.5" - 26" (140-670mm) |
11.4" 55" (290-1400mm) |
| Flange Facing Range | 6" - 39.7" (152-1016mm) |
4" - 24" (100-610mm) |
5" - 30" (145-762mm) |
12" - 60" (305-1525mm) |
| Weight | 145 Kg (319Lbs) |
45 Kg (99Lbs) |
49 Kg (108Lbs) |
412 Kg (906Lbs) |
