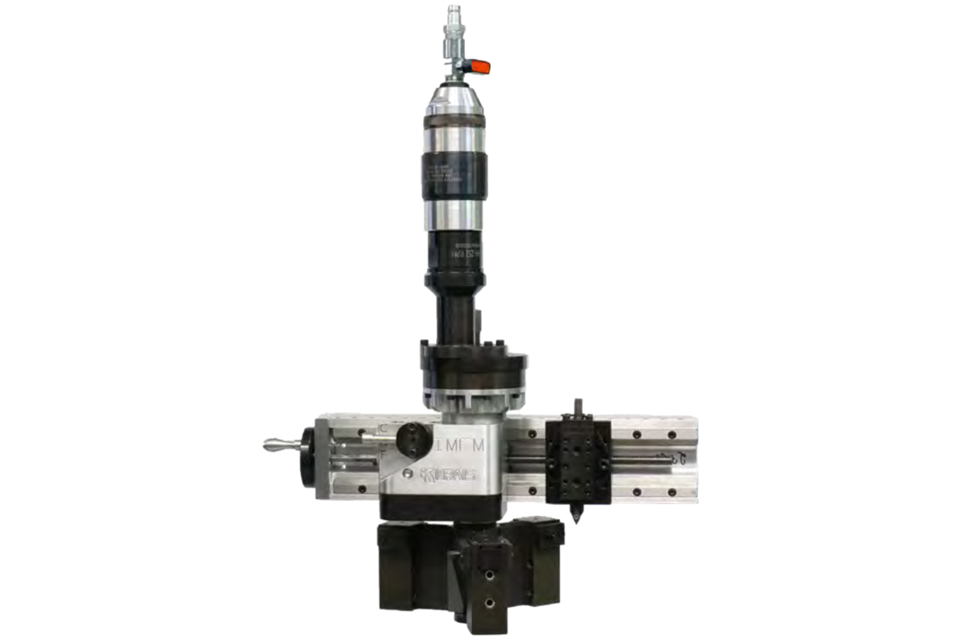

Internally mounted, lightweight, and durable machine tool. Ideal for machining all types of flange faces, seal grooves, weld preparations, and counterbores.
As standard, the IMFM24 is supplied with a complete toolkit, including tool and inserts, air filter with lubricator and hose connection, required jaws to cover the full range, paper manual, and storage/shipping box.
Besides the standard pneumatic 2.2Hp drive, we offer a wide range of pneumatic and electric drives for the IMFM24.
- Heavy-duty steel/aluminium design
- High rigidity of the machine in relation to the dimension and weight
- Solid but lightweight construction
- Continuous groove facing feeds
- Swivel tool post for grooves, RTJ flanges, and bevels
- Easy levelling and centering system with built-in fast centre feature
- Quick clamping with solid 50mm self-centering steel shaft
- CE certified
Comparison chart
| Specification |  IMFM-24 - Flange Facer |
MMFM |
IMFM-30 |
IMFM-40 |
|---|---|---|---|---|
| ID Locking Range | 4" - 20" (100-508mm) |
1.0" - 5.9" (26-150mm) |
5.5" - 26" (140-670mm) |
4.72" - 32.2" (120-820mm) |
| Flange Facing Range | 4" - 24" (100-610mm) |
1.45" - 10" (37-254mm) |
5" - 30" (145-762mm) |
6" - 39.7" (152-1016mm) |
| Weight | 45 Kg (99Lbs) |
10.43 Kg (23 Lbs) |
49 Kg (108Lbs) |
145 Kg (319Lbs) |
