Cobra 400 Tube-Prepping Machine: Bevel, Face, and Counter Bore with Power

Versatile Tool for Tube and Pipe Machining from 1 ½” to 6 ¾” OD

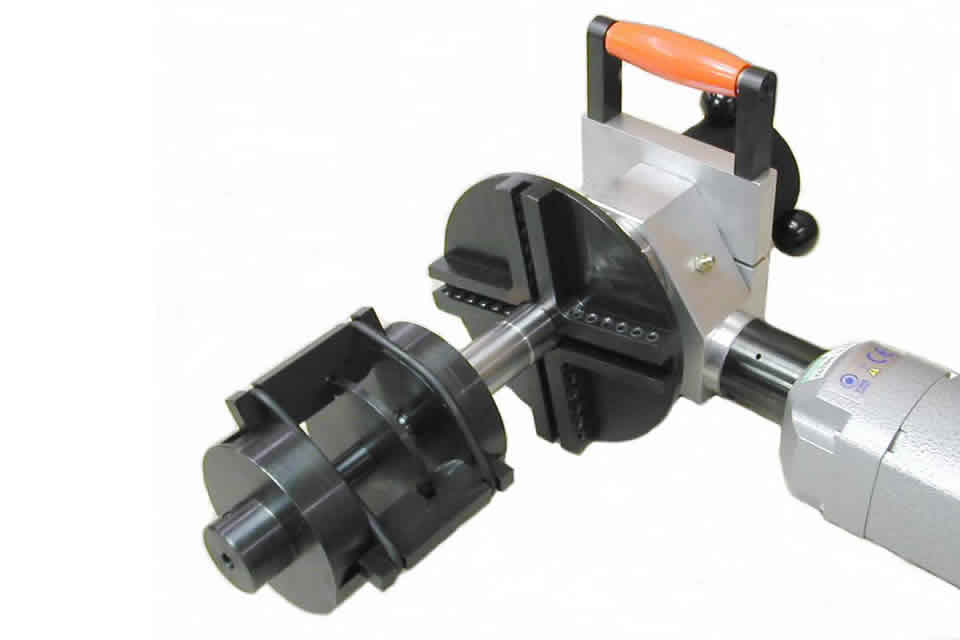

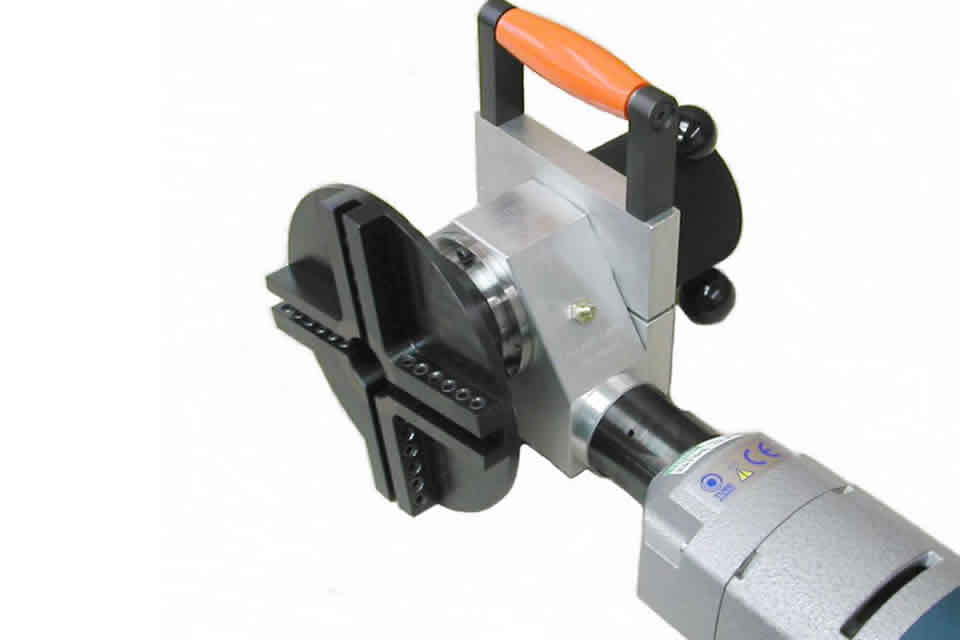

The COBRA 400 machine is a mid-size, High Power portable tube-prepping machine, designed to bevel, face, and counterbore most types of tube and pipe work.

This versatile midrange machine utilises torque-reacted mandrels which align themselves on the inside of the workpiece enabling the machine to cover a range of 38.5mm (1 ½”) ID to 172mm (6 ¾”) OD.

The Cobra 400 machine can also be used with Short Locking Units for machining short parallel pipe lengths and fittings.

A heavy-duty worm and spur gear drive system combines a compact head design with smooth reliable power transmission.

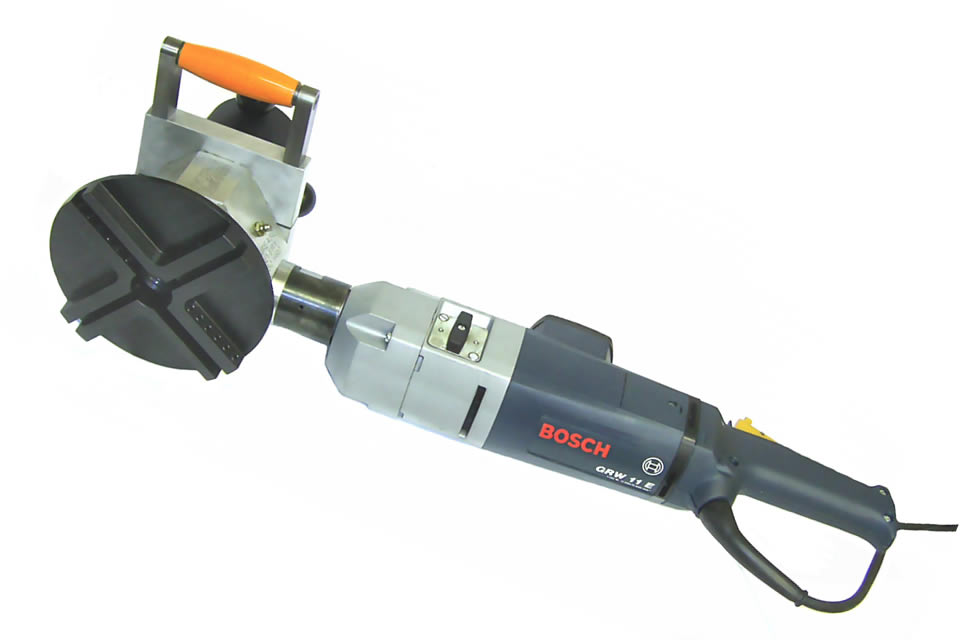

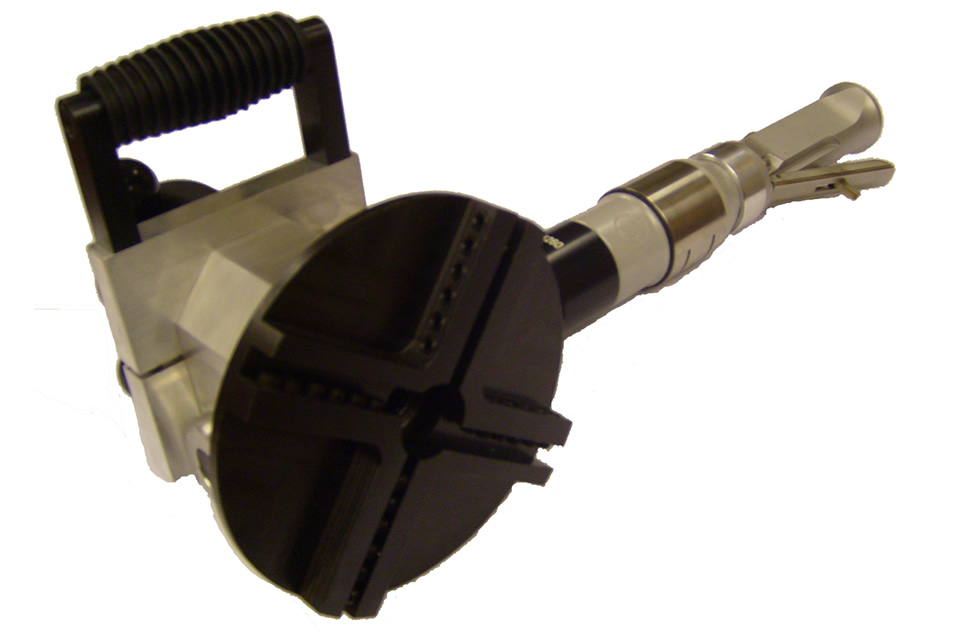

Fitted with either an electric 110/240v or pneumatic motor the Cobra 400 has the ability to withstand the toughest working environments.


Comparison chart


Cobra 400 - 1.5" to 6.75"

TB1 Prepper - 0.63" to 1.5"

TB3 Prepper - 1" to 3.5"

Super Rocket - 3.5" to 12"
OD Bevel Range

1.5" - 6.75" (38-171mm)

0.6" - 1.5" (15-38mm)

1.0" - 3.5" (25-89mm)

3.56" - 12" (90-305mm)

ID Locking Range

1.5" - 6.3" (38-160mm)

0.6" - 1.125" (15-28mm)

1.0" - 3.0" (25-76mm)

3.56" - 11.75" (90-300mm)

Weight Pneumatic

13 Kg (29Lbs) - Machine

9.2 Kg (20.3Lbs)

9.2 Kg (20.3Lbs)

19 Kg (42Lbs) - Machine

Weight Electric

12 Kg (26Lbs) - Machine

10.2 Kg (22.5Lbs)

10.2 Kg (22.5Lbs)


Weight Battery


10.75 Kg (23.7Lbs)

10.75 Kg (23.7Lbs)
